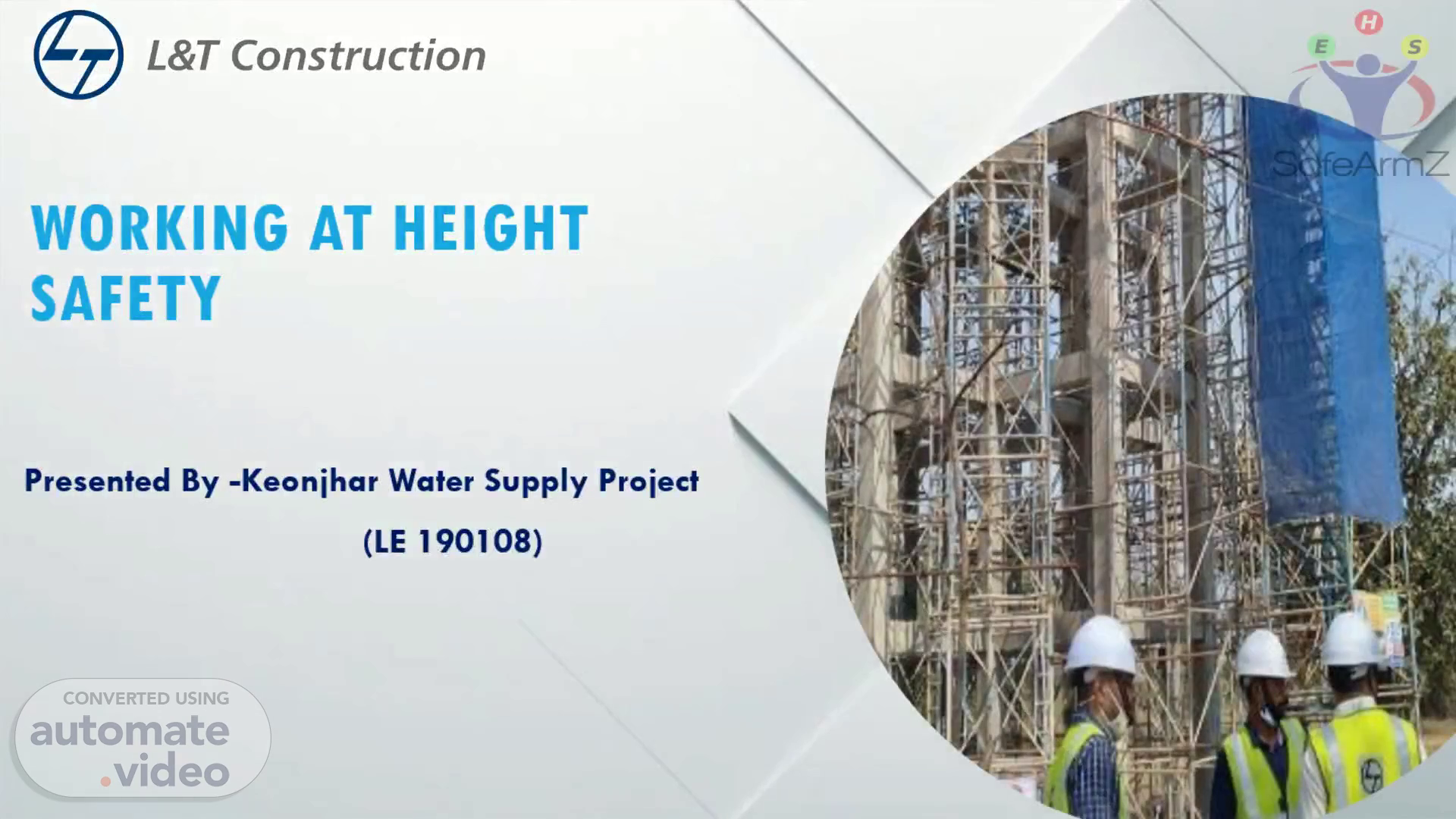

Working At Height Safety

Working At Height Safety. Presented By -Keonjhar Water Supply Project ( LE 190108).

Work at height activity. Any work to be performed at height of 1.5 meters or above from the ground level where a person is standing is defined as work at height. Even a job being carried out below the ground level is classified as Work at height..

Scope of work. Construction of Intake well cum pump house with a designed capacity of 58.91 MLD. Construction of WTP with a designed capacity of 56.02 MLD. Construction of 17 No of Intermediate Booster Pumping Stations (IBPS). Construction of 128 No of Elevated Static Reservoirs (ESR). Construction of 22 No of Ground Level Static Reservoirs (GLSR). Construction of 6 No of Balanced Pumping Station (ESR). Construction of 2 No of Master Balanced Reservoirs (ESR). Construction of Temporary Structures & Boundary Wall..

Structures involved with WAH activities at Our Project-.

Legal & Other IMS Requirements.. Records Doc No HIRA Routine IM-08-B EAISR Routine IM-08-E EHS Inspection and Monitoring Plan IM-08-H Master Legal Register /Evaluation of Legal Compliances IM-07 SOP for Scaffolding IM-09-A25 SOP for Formwork IM -09-A26 Project EHS Inspection IM-09-B All Applicable Checklists with reference to the activities. IM-09-H Series SOP for selection, use and Maintenance of PPE IM-09-A72 SOP for Delivering pep talk IM-09-A75 SEC card IM-14-H Applicable Permit to Work Systems IM-14 Work at Height Pass IM-14-L Skill Authorization Pass IM-14-N Emergency Action Plan for Identified hazards IM-29-C Emergency Preparedness & Response IM-29 View EHS IM-33 SOP for Post Lockdown Work Resumption IM-09-A109 SOP for Pathogenic Infection Prevention and Control IM-09-A106 SOP for Disinfection, Reuse & Safe Disposal of PPEs IM-09-A112 Approved Scheme Drawing -.

FMP Approved Scheme Drawings for Scaffolding Erection..

EHS Implementation. Screening & Induction, Skill Medical Test & Work at Height Test for Engaged Workmen. Work At Training on Site Specific Conditions. Continuous Supervision by competent person. Implementation of SEC & Work Permit System. Daily Pep Talk. Periodical Inspections of Scaffolding & Formwork. Emergency Preparedness & Response Mock Drills. Periodical Medical Check-ups. Waste Minimisation & Clean Site Campaigns..

Skill Medical Test, Screening & Induction..

Work at Height Pass Test & Issue Height Pass.

Work At Training on Site Specific Conditions.

SEC & Work Permit Implementation..

Daily PEP Talks Before Start The Work.

Periodical Inspections of Scaffolding & Formwork.

Emergency Preparedness & Response Mock Drills..

Emergency Preparedness & Response Mock Drills..

Periodical Health Checkup..

Waste Minimization & Clean Site Campaigns..

Waste Minimization & Clean Site Campaigns..

Sequence Of Operations For Elevated Service Reservoir.

Safety Measures On Survey. Surveyors carries the Sufficient Drinking water throughout the journey of work. If over head electrical line exits, Wooden Leveling staffs & ranging rods were used for the surveying to prevent electric shocks. Due to Road Traffic Conditions, Surveyors were worn the fluorescent jackets. Surveying activities carried out after sunset and before sunrise..

Safety On Trenches & Excavation Activity.. Prevention of Soil collapse by maintain sloping & benching. Keeping the over burden soil away from the edge of the trench. Continuous dewatering carried out to reduce formation of Seepage. Proper access & Egress into the trench. Hard barricade around the trench & excavation. Display of Danger & Warning Signage boards.

Safety On PCC & Foundation Activities.. A picture containing grass, tree, outdoor, plant Description automatically generated.

Safety On Plinth Beam Activities.. Working area is cordoned off with boundary wall. Regular Housekeeping activities carried out in the workplace. Ensure the required PPE & Double Insulated Power tools being used..

Safety Measures On Column Activities.. Calculate and ensure the availability of Scaffolding materials for the particular overhead tank/ elevated service reservoir well ahead. A trained scaffold competent person/ site engineer monitor the scaffolding structure. Only trained scaffold workmen erect/ dismantle the scaffold. Materials are being shifted manually to normal heights by using Industrial Pulley. Ensure the scaffolding materials are properly stacked and well maintained. Ensure the Adequate working Platform with double hand rails, Edge protection, Secondary containment net & Life line anchoring arrangements..

Safety Measures On Column Activities..

Safety Measures On Tie Beam Activities.. Ensured continuous access & egress towards the current working location. Maintained Stable & Secured working platforms. Safety net provided around the current working location. Secondary containment nets provided under current working locations. Ensured double handrails along the access & egress and working platforms. Ensured Continuous Life line arrangements at the current working location. All Gaps between the scaffold towers fully occupied with walkway zally & restrict with the Gate provided at the entrance of the Temporary stair case to avoid unauthorized entry..

Safety Measures On Tie Beam Activities.. 114. A picture containing text, computer Description automatically generated.

Safety Measures On Wall Activities.. Safe access to be provided for reinforcement, shuttering & concreting activity at both side of the wall. Required capacity of industrial pulley being provide to shift the materials to the top. Ensures Safety Nets along edge to prevent fall from height. No loose material places in the Base Slab walk way access and Access & egress . Safety nets installed as close as possible to the working level to avoid Gaps. Ensures Safety net tied above the 1.8m height from the current working location to avoid fear factor to engaged Workmen. Ensured Continuous Life line arrangements at the current working location. Landing platform that connects stair case and the Base Slab/ Top Slab Area has been fully guarded with Double Hand rails.

Safety Measures On Wall Activities..

Safety Measures On Base & Top Slab Activities.. Ensures the safe working load of the Working Platform. Maintain each Working Platform in good working order and inspects daily. Ensures Safety Nets along edge to prevent fall from height. Safety net mesh openings have a maximum size of 10 cm x 10 cm and be secured at each crossing to prevent elongation of the opening. Safety nets installed as close as possible to the working level to avoid Gaps. Ensured Secondary containment nets, 6m below the working level. The safety nets extended out at least 2m from the side of the open edge. Ensures Safety net tied above the 1.8m height from the current working location to avoid fear factor to engaged Workmen. Ensured Continuous Life line arrangements at the current working location. Landing platform that connects stair case and the Base Slab/ Top Slab Area has been fully guarded with Double Hand rails.

Safety Measures On Base & Top Slab Activities..

Safety Measures On Base & Top Slab Activities..

Safety Measures On Permanent Stair Case Activities.

Safety Measures To Work Inside The Tank. Multi-gas detection test carried out before engage the workmen inside the tank. Ensured Proper Access & Egress with Adequate Landing Platform . Maintains Sufficient illumination inside the tank . Continuous Exhaust ventilation system provided inside the tank during the plastering Work..

Safety measures on Painting Activities. • .iiüiii'.

Covid-19 Awareness & Distribution of sanitizers and nose mask for Villagers.

Disinfection Activities.

Disinfection Activities.

Covid-19 Vaccination Status. Available Vaccinated Pending 1 st Dose 2 nd Dose 1 st Dose 2 nd Dose Staffs 60 60 60 0 0 Cook & Helpers 22 22 22 0 0 Supervisors 108 108 108 0 0.

COVID – 19 SOP Implementation:.

Thank you.
