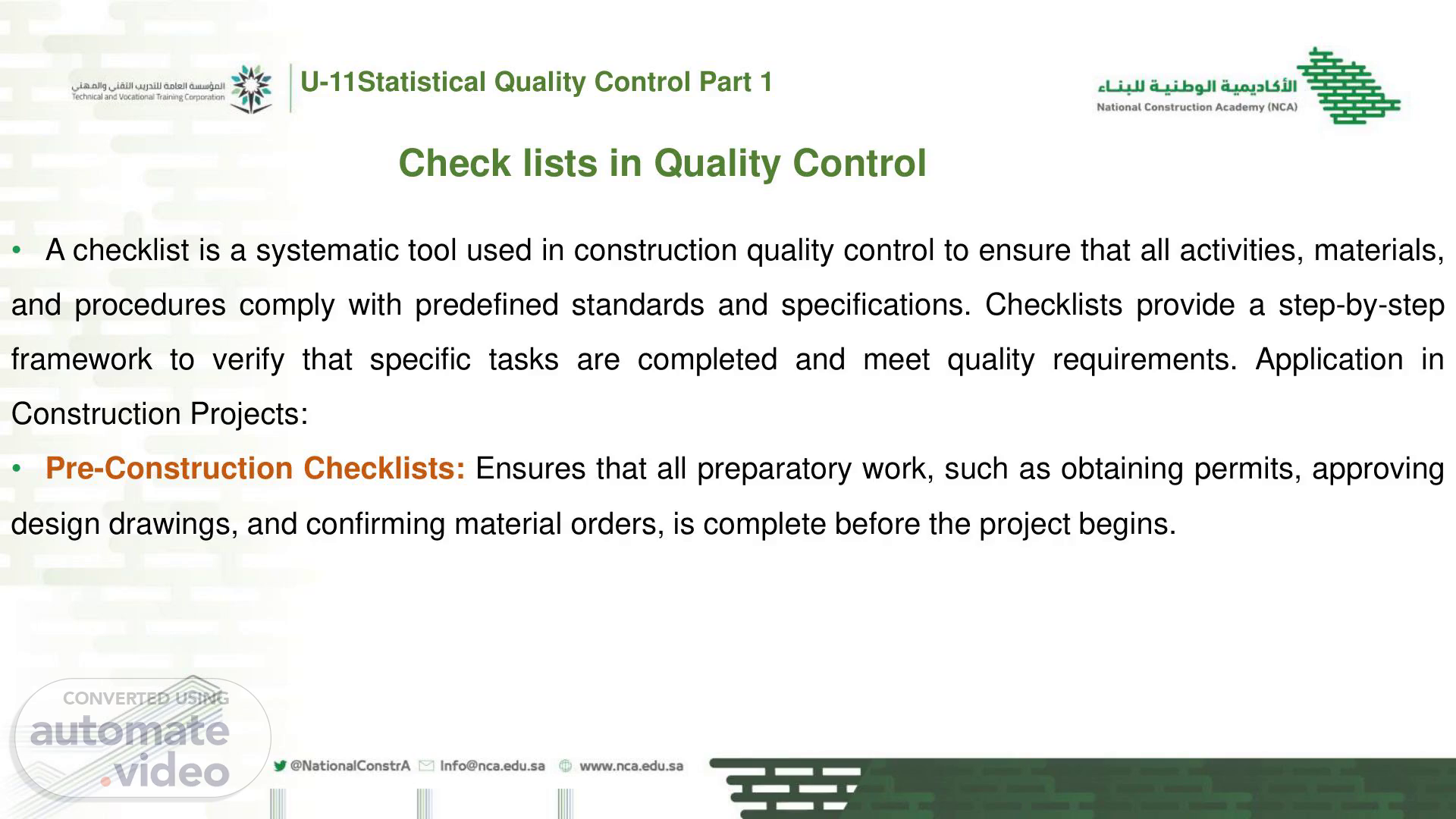

[Audio] U-11Statistical Quality Control Part 1 Check lists in Quality Control A checklist is a systematic tool used in construction quality control to ensure that all activities, materials, and procedures comply with predefined standards and specifications. Checklists provide a step-by-step framework to verify that specific tasks are completed and meet quality requirements. Application in Construction Projects: Pre-Construction Checklists: Ensures that all preparatory work, such as obtaining permits, approving design drawings, and confirming material orders, is complete before the project begins..

[Audio] U-11Statistical Quality Control Part 1 Check lists in Quality Control On-Site Inspection Checklists: Helps site engineers and inspectors verify that materials and workmanship on-site meet quality standards, ensuring all essential quality checks are followed in various stages of construction. Final Inspection Checklists: Ensures that completed construction work is in accordance with contract specifications and that all defects are rectified before handing the project over to the client..

[Audio] U-11Statistical Quality Control Part 1 Common Types of Checklists  Material Checklists: Verifies that materials delivered to the construction site meet quality standards. For instance, the checklist may include parameters like the correct grade of steel bars or ensuring cement complies with specified standards. Example: A checklist for concrete batching might include items like ensuring the correct watercement ratio, appropriate aggregate size, and mixing time..

[Audio] U-11Statistical Quality Control Part 1  Workmanship Checklists: Focuses on the quality of work performed by laborers. For example, a checklist for brickwork will include checks for mortar mix, brick alignment, and joint thickness. Example: During roof installation, a checklist could verify that waterproofing materials are correctly applied, and that all joints and flashings are sealed properly..

[Audio] U-11Statistical Quality Control Part 1 Common Types of Checklists  Safety Checklists: Ensure safety standards are adhered to on-site to protect workers and prevent accidents. Example: A checklist for scaffolding might include ensuring proper erection, securing, and stability of scaffolding structures before workers use them..

[Audio] U-11Statistical Quality Control Part 1 Benefits of Checklists Consistency: Standardizes quality control across different teams and shifts by providing a structured format for inspections. Error Prevention: Reduces the likelihood of missing critical steps or tasks in a process. Accountability: Documents the completion and inspection of work, helping track who was responsible for each task. Compliance: Ensures that all work complies with legal and contract requirements..

[Audio] U-11Statistical Quality Control Part 1 Checklists in Construction Checklist /Item Description Status Comments 1. Excavation Completed Excavation depth: 1.5 meters Ensure excavation is done according to the approved drawings and safety measures are in place. 2. Concrete Mix Verify water-cement ratio and ensure aggregates are clean and within specified limits. In-Progress Pending lab test results 3. Reinforcement Check placement, spacing, and cover of steel reinforcement as per the design. Completed Satisfactory 4. Curing Ensure proper curing practices are followed for concrete work for 7 to 14 days. Not Started Starts on 1st October 5. Safety Gear Workers wearing safety helmets, gloves, and boots. Completed Inspection by Safety Officer.

[Audio] U-11Statistical Quality Control Part 1 Example (2) Checklists in Construction Scenario : During a large commercial building project, the quality of the concrete being poured is critical to ensuring the structural integrity of the building. A checklist is used before each concrete pour to verify that all required preconditions have been met. Checklist: Concrete Grade Verified: Confirm the concrete mix is the specified grade (for example, M25). Reinforcement Placed: Check if steel reinforcements are correctly installed as per design drawings. Formwork Setup: Ensure formwork is stable and leak-proof. Slump Test Performed: Verify the workability of the concrete mix with a slump test..

[Audio] U-11Statistical Quality Control Part 1 Example (2) Checklists in Construction Weather Conditions: Ensure the weather is conducive for concrete pouring (for example, temperature not too hot or cold). Vibration of Concrete: Ensure that vibrating equipment is ready for removing air pockets during pouring. Outcome: The checklist ensures all conditions are met before pouring begins, preventing potential defects such as honeycombing or improper curing..

[Audio] U-11Statistical Quality Control Part 1 Cause-and-Effect (Ishikawa) Diagrams Also known as fishbone diagrams, cause-and-effect diagrams are used to systematically identify the root causes of quality problems in construction processes. These diagrams help visualize the different factors that contribute to quality issues. Application in Construction: Identifying Causes of Defects: For example, if cracks appear in a concrete foundation, a cause-andeffect diagram can help explore factors like material quality, environmental conditions, workmanship, and equipment..

[Audio] U-11Statistical Quality Control Part 1 Cause-and-Effect (Ishikawa) Diagrams Steps for Creating a Cause-and-Effect Diagram: Define the Problem: State the problem (for example, cracks in a wall). Identify Major Categories: Major causes may include materials, methods, manpower, machines, and environment. Brainstorm Sub-Causes: List specific factors under each category (for example, under "Materials," list improper concrete mix or contaminated water). Analyze the Diagram: Review the diagram to determine which factors contribute most to the problem..

[Audio] U-11Statistical Quality Control Part 1 Cause and Effects Diagram in Construction.

[Audio] U-11Statistical Quality Control Part 1 Example (3) Cause and Effect Diagram in Construction Scenario: Cracking and Low Strength in Poured Concrete for a Building Foundation Problem (Effect): After pouring the concrete for a building foundation, multiple cracks appeared, and the compressive strength tests revealed that the concrete did not meet the required design strength. The contractor and consultant are concerned about the structural integrity of the foundation and must investigate the root causes of the issue. Major Categories of Causes: Materials Labor Equipment Methods Environment Management.

[Audio] U-11Statistical Quality Control Part 1 Acceptance Sampling Acceptance sampling is a method where a random sample from a batch of materials is inspected to decide whether the entire batch meets the required quality standards. It is often used for construction materials like concrete, steel, or asphalt. Types of Acceptance Sampling Plans: Single Sampling Plan: Process: A single random sample is taken from the batch. Based on the inspection results, the batch is either accepted or rejected..

[Audio] U-11Statistical Quality Control Part 1 Acceptance Sampling Application: Testing concrete strength by randomly sampling cubes from a batch. If the sample passes the strength test, the whole batch is accepted. Double Sampling Plan: Process: Two samples are taken. If the first sample results are inconclusive (borderline between acceptance and rejection), a second sample is taken before making a final decision. Application: Testing steel bar strength. If the first sample yields marginal results, a second sample is tested before deciding to accept or reject the batch..

[Audio] U-11Statistical Quality Control Part 1 Example(4) Acceptance Sampling for Concrete Strength Testing Scenario: A construction project involves pouring large quantities of concrete for the foundation of a multi-story building. The contract requires that the compressive strength of the concrete must meet or exceed 30 MPa (mega Pascal's) after 28 days of curing. To ensure the quality of the concrete being used, acceptance sampling is applied to test whether the concrete meets the required strength. Process of Acceptance Sampling: Concrete Batch Selection: 1. Each concrete batch delivered to the site consists of a certain volume (for example, 100 cubic meters). 2. The contractor or quality control team cannot test the entire batch for strength, so they take random.

[Audio] U-11Statistical Quality Control Part 1 Example (4): Acceptance Sampling for Concrete Strength Testing 3. samples of fresh concrete from each batch during the pouring process. Sample Size: 1. The quality control plan specifies that for every 100 cubic meters of concrete, 5 samples will be taken at random intervals. 2. These samples are formed into test cylinders and cured under controlled conditions. Testing the Samples: 1. After 28 days, the 5 concrete cylinders are tested for compressive strength using a compression testing machine. 2. The results from the samples are compared to the required strength of 30 MPa..

[Audio] U-11Statistical Quality Control Part 1 Example(4): Acceptance Sampling for Concrete Strength Testing Acceptance Criteria: 1. The acceptance sampling plan is set up with certain criteria: 2. If all of the 5 samples meet or exceed the strength requirement of 30 MPa, the entire batch is accepted. 3. If 1 or 2 samples fall slightly below 30 MPa but within an acceptable range (for example, 28-30 MPa), additional tests may be conducted to determine whether the batch can still be accepted. 4. If 3 or more samples fall below 30 MPa, or any sample is significantly below the acceptable range (for example, less than 28 MPa), the entire batch is rejected..

[Audio] U-11Statistical Quality Control Part 1 Example (4): Acceptance Sampling for Concrete Strength Testing Decision: 1. If the batch is accepted, the project continues with the assumption that the concrete quality is adequate. 2. If the batch is rejected, the contractor may need to remove the defective concrete or perform remedial actions, such as reinforcing the structure, depending on the severity of the failure..

[Audio] U-11Statistical Quality Control Part 1 Summary  Statistical Quality Control (S-Q-C--) is a methodology that applies statistical methods to monitor and control the quality of processes in construction projects. It ensures that construction processes meet predetermined quality standards by identifying variations in construction processes and materials early, thus reducing errors, defects, and rework.  A flow chart is a graphical representation of a process or system, illustrating the sequence of steps required to complete a task. In construction quality control, flow charts help visualize the workflow for completing tasks, ensuring all steps are followed in a logical, consistent manner..

[Audio] U-11Statistical Quality Control Part 1 Summary  A checklist is a systematic tool used in construction quality control to ensure that all activities, materials, and procedures comply with predefined standards and specifications. Checklists provide a step-by-step framework to verify that specific tasks are completed and meet quality requirements.  cause-and-effect diagrams are used to systematically identify the root causes of quality problems in construction processes.  Acceptance sampling is a method where a random sample from a batch of materials is inspected to decide whether the entire batch meets the required quality standards. It is often used for construction materials like concrete, steel, or asphalt..
