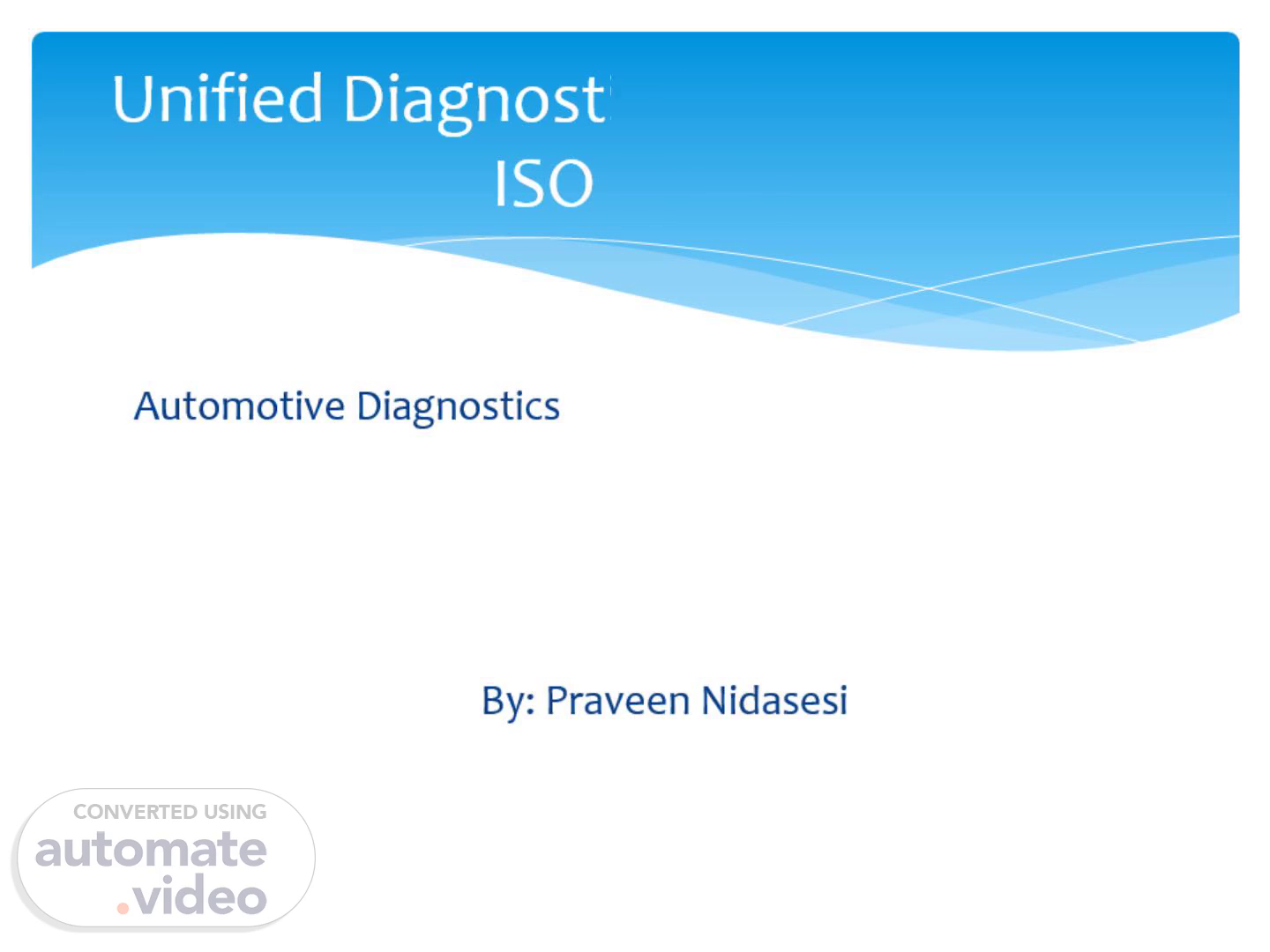

Automotive Diagnostics By: Praveen Nidasesi. Unified Diagnostic Services (UDS) – ISO 14229.
Scene 2 (7s)
Introduction to UDS UDS Architecture Services Overview Sessions & Security Data Read/Write NRC & Testing Tools & Summary.
Scene 3 (17s)
UDS stands for Unified Diagnostic Services Standard: ISO 14229 Used for ECU diagnostics, flashing, and monitoring.
Scene 4 (26s)
ECU fault diagnosis Vehicle compliance Programming & coding Automotive QA validation.
Scene 5 (35s)
Tester ↔ ECU Request / Response mechanism Service ID (SID) based.
Scene 6 (43s)
CAN, LIN, FlexRay, Ethernet Uses ISO-TP for segmentation Multi-frame handling.
Scene 7 (52s)
Session Control (0x10) ECU Reset (0x11) Security Access (0x27) Read/Write Data (0x22 / 0x2E).
Scene 8 (1m 1s)
Default Session Extended Session Programming Session.
Scene 9 (1m 9s)
Hard Reset Soft Reset Key Off/On behavior. ECU Reset – 0x11.
Scene 10 (1m 17s)
Seed & Key mechanism Unlock protected functions Prevents unauthorized access.
Scene 11 (1m 25s)
Reads ECU parameters Example: 22 F1 90 Response: 62 F1 90 XX XX.
Scene 12 (1m 34s)
Write ECU data Requires security unlock. Write Data by ID – 0x2E.
Scene 13 (1m 42s)
Start / Stop / Request Results Used for calibration and testing.
Scene 14 (1m 50s)
Used in flashing Download request Transfer data blocks.
Scene 15 (2m 6s)
0x10 General Reject 0x13 Invalid Format 0x33 Security Denied 0x7F Service Not Supported.
Scene 16 (2m 15s)
ECU Validation Integration Testing Regression & Automation.
Scene 17 (2m 22s)
CANoe / CANalyzer ODIS Python CAN Libraries. Tools for UDS Testing.
Scene 19 (2m 35s)
SID (Hex) Service Name Purpose / Usage 0x10 Diagnostic Session Control Switch ECU to default, programming, or extended session 0x11 ECU Reset Restart ECU (hard, key-off-on, etc.) 0x14 Clear Diagnostic Information Clear stored DTCs in ECU 0x19 Read DTC Information Read Diagnostic Trouble Codes, freeze frame, extended data 0x22 Read Data By Identifier (RDBI) Read data (VIN, SW version, sensor values, etc.) 0x23 Read Memory By Address Access raw memory content 0x27 Security Access Unlock ECU functions (via challenge–response) 0x28 Communication Control Enable/disable certain ECU comms 0x2E Write Data By Identifier (WDBI) Write config/coding data 0x2F Input Output Control By Identifier Control actuators (fan, lights, relays, etc.) 0x31 Routine Control Start/stop routines (self-test, checksum, erase memory) 0x34 Request Download Prepare ECU for software flashing 0x35 Request Upload Retrieve ECU memory contents 0x36 Transfer Data Send/receive flash data blocks 0x37 Request Transfer Exit Complete flashing/upload sequence 0x3D Write Memory By Address Write directly to ECU memory 0x3E Tester Present Keep session alive, prevent timeout 0x83 Access Timing Parameters Configure diagnostic timing values.
Scene 20 (3m 22s)
Tester Tool → ECU 1. Send Request (SID) 2. ECU Processes 3. ECU Sends Response Positive Response: SID + 0x40 Negative Response: 0x7F + SID + NRC.
Scene 21 (3m 34s)
Single Frame (SF) First Frame (FF) Consecutive Frames (CF) Flow Control (FC) Used when data > 7 bytes.
Scene 22 (3m 43s)
Request: 10 03 Meaning: Extended Diagnostic Session Response: 50 03 Meaning: Session Activated.
Scene 23 (3m 53s)
Request: 22 F1 90 Meaning: Read VIN Response: 62 F1 90 31 48 47 43 ....
Scene 24 (4m 3s)
Request: 27 01 → Request Seed Response: 67 01 XX XX Request: 27 02 YY YY → Send Key Response: 67 02 → Unlocked.
