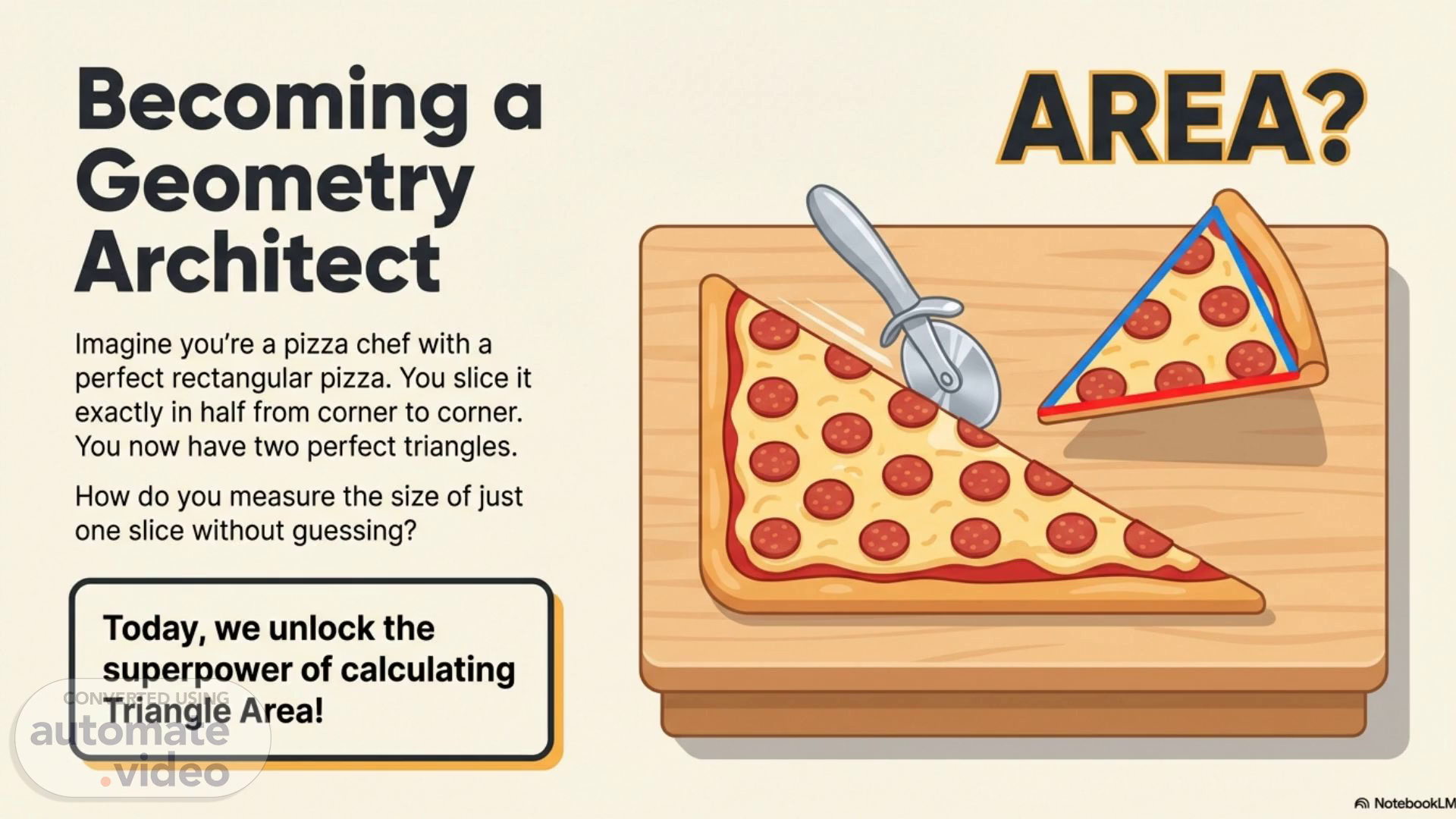

Becoming a Geometry Architect Imagine you're a pizza chef with a perfect rectangular pizza. You slice it exactly in half from corner to corner. You now have two perfect triangles. How do you measure the size of just one slice without guessing? Today, we unlock the superpower of calculating Triangle Area! AREA? o 0 o NotebookLM.

Every triangle is simply a rectangle on a 50% off sale If you know how to find the area of a rectangular room (length x width), you already know 90% of the trick for triangles. We take the bottom side, multiply it by the straight-up distance, and cut the answer in half. Height 1 Area = — x Base x Height 2 Base Common Mistake Alert! Don't forget the fraction. No 1/2, No Triangle! NotebookLM.

The height requires a perfect 90-degree drop The height isn't just any side of the triangle. It must be a straight line from the top peak down to the base, making a perfect 'L" shape. This is called being perpendicular. Height Base Warning! Don't get tricked by the slanted sides. The height must be a straight drop. Look for the little square symbol—that's your map to the treasure. NotebookLM.

Finding the height inside standard shapes In a right-angled triangle, the height is already done for you. It's just one of the sides. For most triangles, the height hides inside like a secret pillar. NotebookLM.

Extending the base for leaning shapes Height Base Sometimes the top peak is so far over, the height actually falls outside the triangle! When this happens, we simply draw an imaginary extension of the base to meet the straight-drop height. NotebookLM.

Plotting secret locations on the coordinate map 0 Let's put our geometry on the map. We have three secret locations. After plotting A and B, we draw a boundary line between them. Then, we establish a perimeter around our center command point, C. NotebookLM.

Imagine Point C is a signal tower with a 2-mile range. Signal towers and the two-mile danger zone -1 4 3 2 Point A We want to know which parts of our road (Line AB) are outside that o communication circle. -2 -3 -4 c (0,0) Distance = 2 Point B Distance < 2 Distance = 2 -3 -2 2 3 4 Logic Check If the distance from the center is greater than the radius, it sits in the Outer Zone. We color it red! tqotebookLM.

Math is just drawing boundaries and measuring the space inside If you stand in a field with a 2-meter rope tied to a pole, anything you can't reach is in the "Greater Than 2" zone. 2-meter rope - Area: Half the base times the height (measuring the inside space). - Radius: Your rope (the exact boundary limit). - Outside: Any point where distance to center > radius NotebookLM.

Test Your Eye: Visual Practice Draw a triangle where the height is outside the shape. •eseq pepuelxe ue 01 ep!lto Iq6pno sdoup Iq6!eq esmqo •.Jemsuv Which symbol means Perpendicular? B: Ill c: L O •aemsuv Why can't we use & a slanted side as the height? •eseq sea6ep 06 'dup power, Iseuoqs ell) eq uemsuv Draw a circle @(M, 3) and a point P where PM > 3. p 3 •epup ep!sv-10 aeuKue umæp eq Isnw d :uemsuv Draw a line from (0,0) to (10,0). Color the part where x > 5. 5 10 •pe10100 s! OL 01 S eu!l JO Jleq •.BMSUV NotebookLM.

Crunching the Numbers: Applied Calculations If a triangle has a base of 10cm and a height of 6cm, what is the area? A: 601 B: 301 C: 15 Ot 18 •aemsuv If you double the height of a triangle but keep the base the same, what happens to the area? •selqnop eae eqL •aemsuv Plot Point Z (4, 4). Is it inside or outside a circle centered at (0,0) with radius 5? •g < s! qo!MM •ep!slno •aemsuv A sail on a boat is 4m tall and 3m wide at the bottom. How much fabric is needed? zW9 = x € x q, •.aemsuv Half of a 20x10 rectangle is what area? OOL :nmsuv NotebookLM.

Rapid-Fire Knowledge Check 1. T/F: The area of a triangle is Base x Height. 2. Fill: The height must meet the base at a _ degree angle. 3. MC: A radius is the distance from the center to the 4. T/F: A point on the edge of a circle has a distance equal to the radius. 5. Fill: 1/2 8 5 = 6. MC: If PM < Radius, point P is the circle. 7. T/F: You can pick any side of a triangle to be the base. 8. MC: The center of the circle is usually labeled with the letter units (like cm2). 9. Fill: Area is measured in 10. T/F: An obtuse triangle has a height that is always inside the shape. False 90 Edge True 20 Inside True Square False NotebookLM.

The Master Architect Challenge If a triangle's area is 20 cm2 and its base is 5 cm, what is its height? Answer: 8 cm Find the area of a triangle with vertices at (0,0), (6,0), and (3,4). Answer: Base=6, Height=4. Area = 12 You have a square with side 6 cm. If you draw a circle inside that touches all four sides, what is the radius? Answer: 3 cm Find the area of a triangle with vertices at Explain. Answer: No, the height is the shortest distance from the vertex to the base line. Can a triangle have a height longer than its sides? Explain. Answer: No, the height is the shortest distance from the vertex to the base line. If PM = 5 and the circle is 2x+1), what is x if P is on the edge? Answer: 2x+1 = 5, so x=2 NotebookLM.

Real-World Test: The Boundary Detectives Game Setup Tape a large circle on the floor. Label the center "M". The Rules The caller shouts a command. Students must physically jump to the correct zone! Last one to the correct zone is out. • Command: PM = 2! -> Jump to the Edge! • Command: PM < 2! -> Jump Inside! Command: PM > 2! -> Jump Outside! NotebookLM.

The Architect's Cheat Sheet Circle Radius Area Formula Inside Circle Outside Circle All points that are the exact same distance from a center point. The magic distance from the center to the edge. 1/2 x Base x Height Any point where the distance to center is less than the radius. Any point where the distance to center is greater than the radius. Remember, a triangle is just a rectangle cut in half. Find the 90-degree drop, multiply base by height, and slice it in two! NotebookLM.
