Scene 1

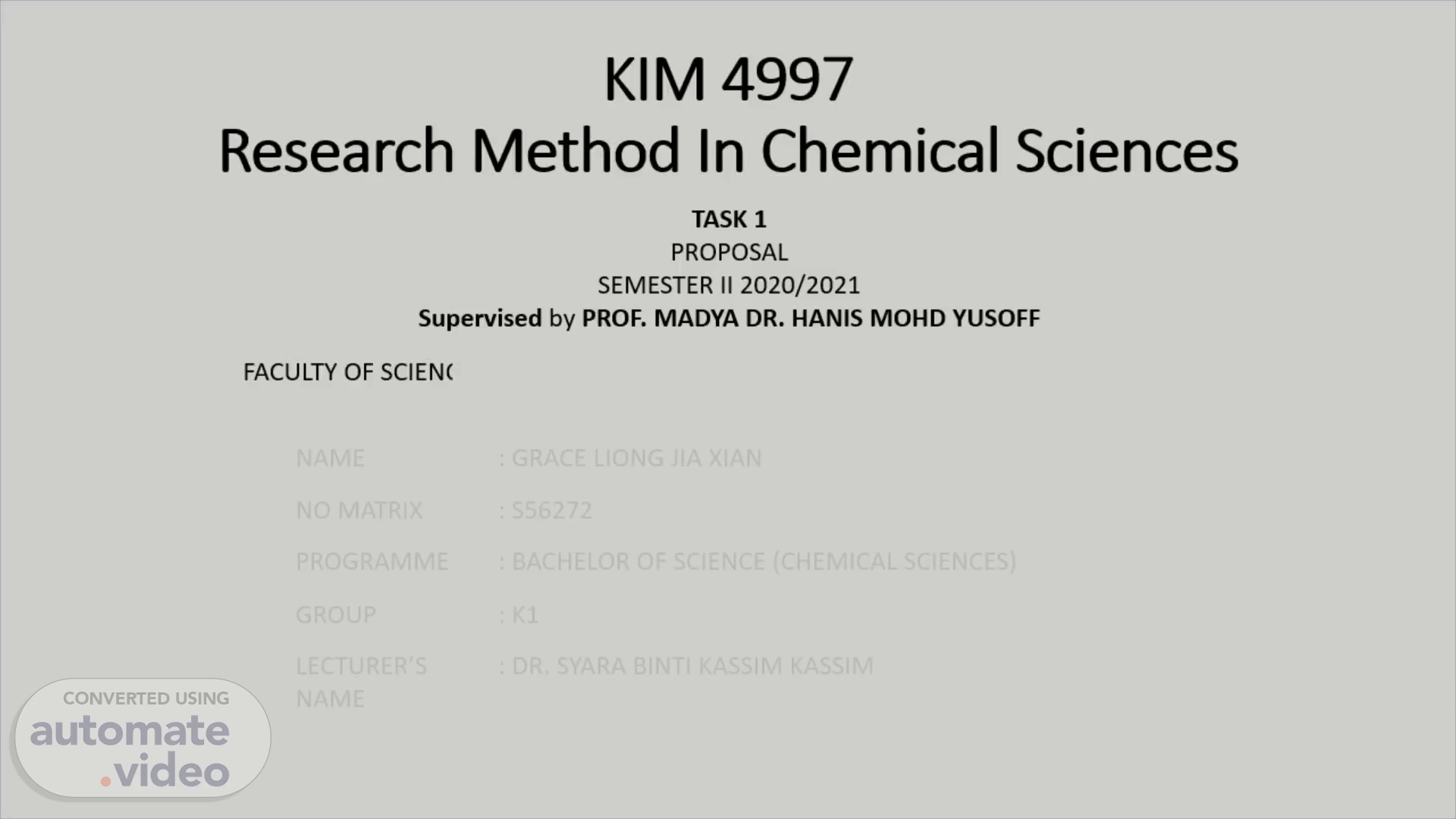

KIM 4997  Research Method In Chemical Sciences

NAME : GRACE LIONG JIA XIAN NO MATRIX : S56272 PROGRAMME : BACHELOR OF SCIENCE (CHEMICAL SCIENCES) GROUP : K1 LECTURER’S NAME : DR. SYARA BINTI KASSIM  KASSIM

TASK 1 PROPOSAL SEMESTER II 2020/2021 Supervised  by  PROF. MADYA DR. HANIS MOHD YUSOFF

FACULTY OF SCIENCE AND MARINE ENVIRONMENT UNIVERSITI MALAYSIA TERENGGANU 2021

Scene 2

Chapter 1 Research background  Problem Statement Chapter 2 Ag-NPs Application of Ag-NPs Chapter 3 Chemicals & Materials Antimicrobial activity Chapter 4 Significance of Study Research Objective Green synthesis of Ag-NPs Hedyotis diffusa Antimicrobial studies of Nanoparticles Preparation of  h.diffusa  extract Phytochemical screening test Green synthesis of Ag-NPs using  h.diffusa Characterization techniques  Expected result

GREEN SYNTHESIS OF SILVER NANOPARTICLES BY USING HEDYOTIS DIFFUSA AND ITS ANTIMICROBIAL PROPERTIES

Scene 3

Scene 4

Nanoscience Nanotechnology Nanoparticles Particles that on the nanometer scale Green Synthesis

Scene 5

Bottom up methods Expensive methods, release chemical hazards Top down methods Requires high energy causing high costing, produce heat, and hazardous gases. Green Synthesis Requires less energy, long-term,  environmentaly  friendly, low-cost, and free of chemical pollutants.

Scene 6

It is simple methods to synthesis Ag-NPs Plant – Hedyotis diffusa  – act as reducing agent and capping agent Eco-friendly, cost effective processes

To synthesis Ag-NPs via green synthesis route using  hedyotis diffusa. To characterize the synthesized Ag-NPs using SEM, FTIR, UV-VIS & XRD. To investigate the characterized Ag-NPs as an antimicrobial agent against gram positive ( S. aureus ) bacteria and gram negative (  E.coli ) bacteria.

Scene 7

Scene 8

47
107.868
Silver
[Kr] 4d105sl
Transition Metals

located  47th  in the periodic table and  67th  in abundance among the elements spheres, rods, wire and plates can be produced

Antimicrobial studies Annamalai, J & Nallamuthu, T, (2016)  , stated  Ag-NPs were founded to be toxic to human pathogens like  Escherichia coli, Proteus vulgaris, Staphylococcus aureus, Pseudomonas aeruginosa  and  Candida albicans .  Kazlagić  et al, (2020)  developed that Ag-NPs synthesized by using the apple extract through the Disk diffusion method have a high potential to suppress the growth of  Salmonella  spp   (20 mm diameter) and  Escherichia coli  when compared to  Amoxicillinn  Clavulanic Acid  .

Scene 9

Synthesis Methods Example Wet chemistry Monosaccharide reduction Citrate reduction Sodium borohydride  Polyol Process Growth of seed-mediated  Light-mediated growth Silver mirror reaction Ion implantation - Biological synthesis Fungi & Bacteria Plant Products and Functionalization Anisotropic structures Triangular Nano-prism Nano-cubes Coating with silica

Scene 10

Green Synthesis of Silver Nanoparticles (Ag-NPs)

nature-friendly reducing agents and capping agents are used large-scale production of Ag-NPs

Metal nanoparticles in plants and plant extracts have  3  main phases in their mechanism the  activation phase , that involves the reduction of metal ions and therefore the nucleation of reduced metal atoms the segment of boom wherein small adjoining nanoparticles spontaneously coalesce into large particles,  observed with the 10 aid of using a growth in nanoparticle thermodynamic stability the segment of the method  that determines the nanoparticles' very last shape

Scene 11

Applications of silver nanoparticles (Ag-NPs)

Textiles
Medicines
Paint
Sensor
Wound Healing
Preservative
Silver nanoparticles
Ca ta lyst
Bio-labeling
Cosmetics
Electronics
Packaging
An tim icrobial Actmty

Scene 12

another Scientific names : Oldenlandia  diffusa Also known as Bai  hua  she  she   cao traditional Chinese medicine found throughout the Orient and Tropical Asia, including China, Japan, and Indonesia treatment of liver diseases, snake bike, and tumors

Scene 13

Scene 14

Dried  Hedyotis diffusa  will purchase from a  local Chinese Traditional Drug Store . Silver nitrate (AgNO3) can obtain from  Sigma-Aldrich Chemical Co  (https://www.sigmaaldrich.com/MY/en/search/agno3?focus=products&page=1&perPage=30&sort=relevance&term=AgNO3&type=product)

Scene 15

3.15 gof
dried H.D
powder
1 dried hedyotis
diffusa will wash
with tap water to
remove the dust
2. blend or
crush into
ground powder
6. filtrate will concentrate by using
a freeze dryer and store in a lab
refrigerator. To be used in future
investigations, the extract will keep
at room temperature.
S. the extract will cool to
room temperature and
filtered with Whatman
No. 1 filter paper.
3- 15g of hedyotis diffusa
powder in a 350mL glass
beaker alongside 300mL of
deionized water.
4. mixture will boil for 10
minutes until the colour of the
aqueous solution changes
from a colourless to brown
colour.

Scene 16

Test for Alkaloids -turbidity of the precipitate. Test for Flavonoids - yellow coloration. Test for Saponins -creation of an emulsion. Test for Steroids- red  colour  produced in the lower chloroform layer. Test for Terpenoids- greyish colour present.

Green Synthesis of Silver Nanoparticles Using Hedyotis Diffusa Extract

Scene 17

Fourier Transform Infrared spectroscopy Ultraviolet-Visible spectroscopy (UV-Vis) Analysis  Scanning Electron Microscopy (SEM) Analysis  X-Ray Diffraction (XRD) Analysis

well-diffusion and broth macro-dilution methods  Antibacterial testing will carry out using the broth dilution method. The   Staphylococcus aureus  is gram-positive bacterial strains while,  Escherichia coli  is gram-negative bacterial strains will use in the antibacterial assays.

Scene 18

Scene 19

Ag-NPs will be synthesis by the green method by using the hedyotis diffusa extract.  Ag-NPs appeared yellowish brown color [in ( aq )] as a result of surface plasmon vibrations.  A characteristic peak at 440 nm in the UV-Vis spectrum    confirms the formation of Ag-NPs .  SEM will determine the size & shape of Ag-NPs with spherical & average size ↓100nm.  FTIR will produce a spectrum (-OH, -CO, -C=O, -C-C, -NH)
