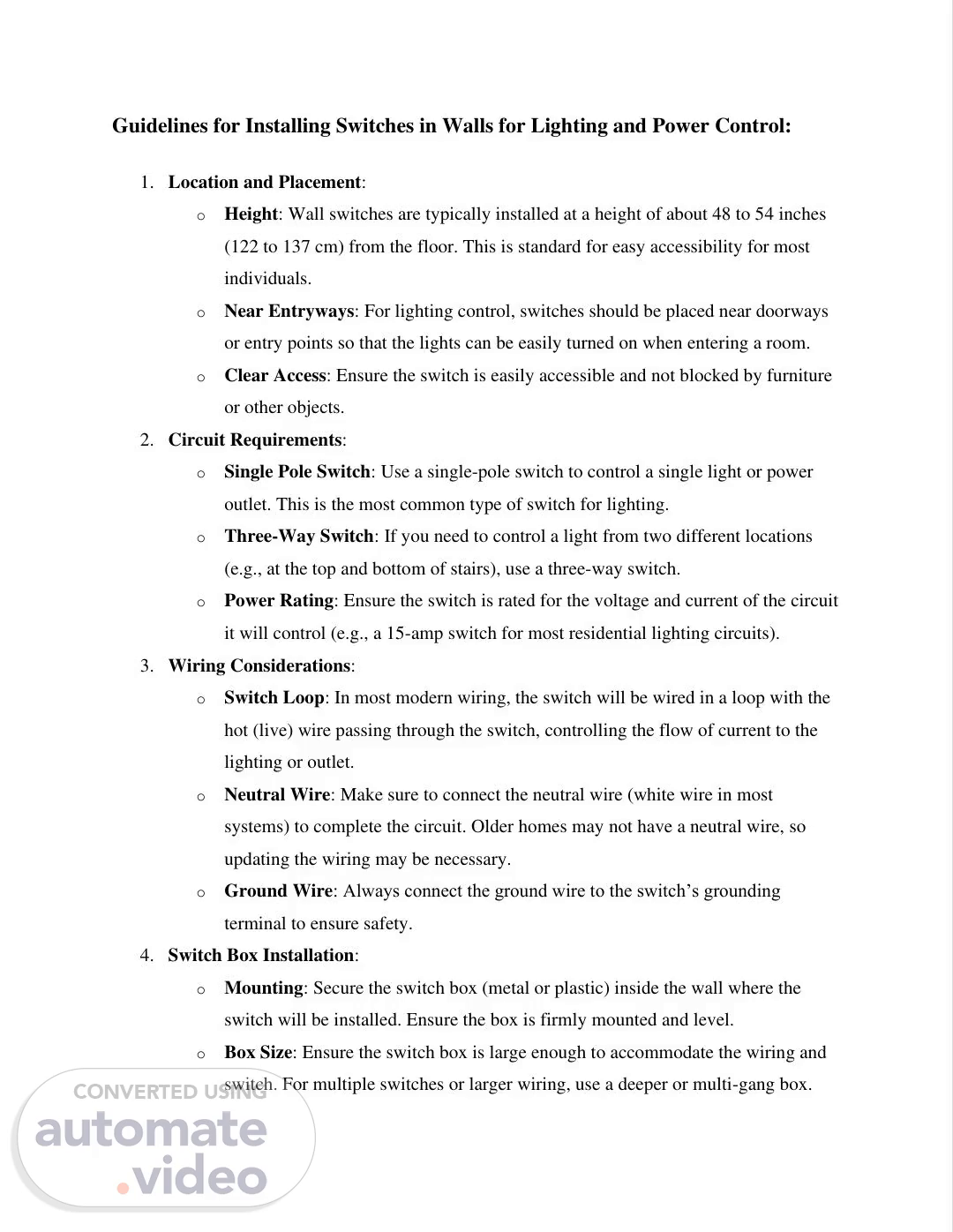

LESSON 26 PT 1 Guidelines for Installing Switches in Walls for Lighting and Power Control

[Audio] In this training video, we will be discussing the guidelines for installing switches in walls for lighting and power control. These guidelines include location and placement, circuit requirements, wiring considerations, and switch box installation. First, we must consider the location and placement of the switch. Typically, wall switches are installed at a height of about 48 to 54 inches from the floor, which is standard for easy accessibility for most individuals. Additionally, for lighting control, switches should be placed near doorways or entry points so that the lights can be easily turned on when entering a room. It is also crucial to ensure that the switch is easily accessible and not blocked by furniture or other objects. Next, we must consider the circuit requirements. If you are looking to control a single light or power outlet, you will need to use a single-pole switch, which is the most common type for lighting. However, if you need to control a light from two different locations, such as at the top and bottom of stairs, a three-way switch is necessary. It is also important to ensure that the switch is rated for the voltage and current of the circuit it will control. For example, a 15-amp switch is suitable for most residential lighting circuits. Then, we must discuss wiring considerations. In most modern wiring, the switch will be wired in a loop with the hot (live) wire passing through the switch, controlling the flow of current to the lighting or outlet. It is important to make sure that you also connect the neutral wire (typically white in most systems) to complete the circuit. If you live in an older home, it is possible that you may not have a neutral wire, in which case updating the wiring may be necessary. Finally, never forget to connect the ground wire to the switch's grounding terminal for safety purposes. Last but not least, we must install the switch box. When mounting the switch box, be sure to secure it inside the wall where the switch will be installed. Make sure that the box is firmly mounted and level. It is also vital to ensure that the switch box is large enough to accommodate the wiring. By following these guidelines, you can ensure safe and effective installation of switches for controlling lighting and power, enhancing both convenience and safety in homes and buildings..

[Audio] When protecting the wires entering the box, use a box with knockouts to shield them from damage. Additionally, ensure proper insulation around the wiring to prevent shorts. This step is crucial in preventing electrical hazards and ensuring the integrity of the circuit. With the protection measures in place, we can move forward with connecting the switch to the lighting or power circuit..

[Audio] By following these guidelines, you can ensure safe and effective installation of switches for controlling lighting and power, which enhances both convenience and safety in homes and buildings..
