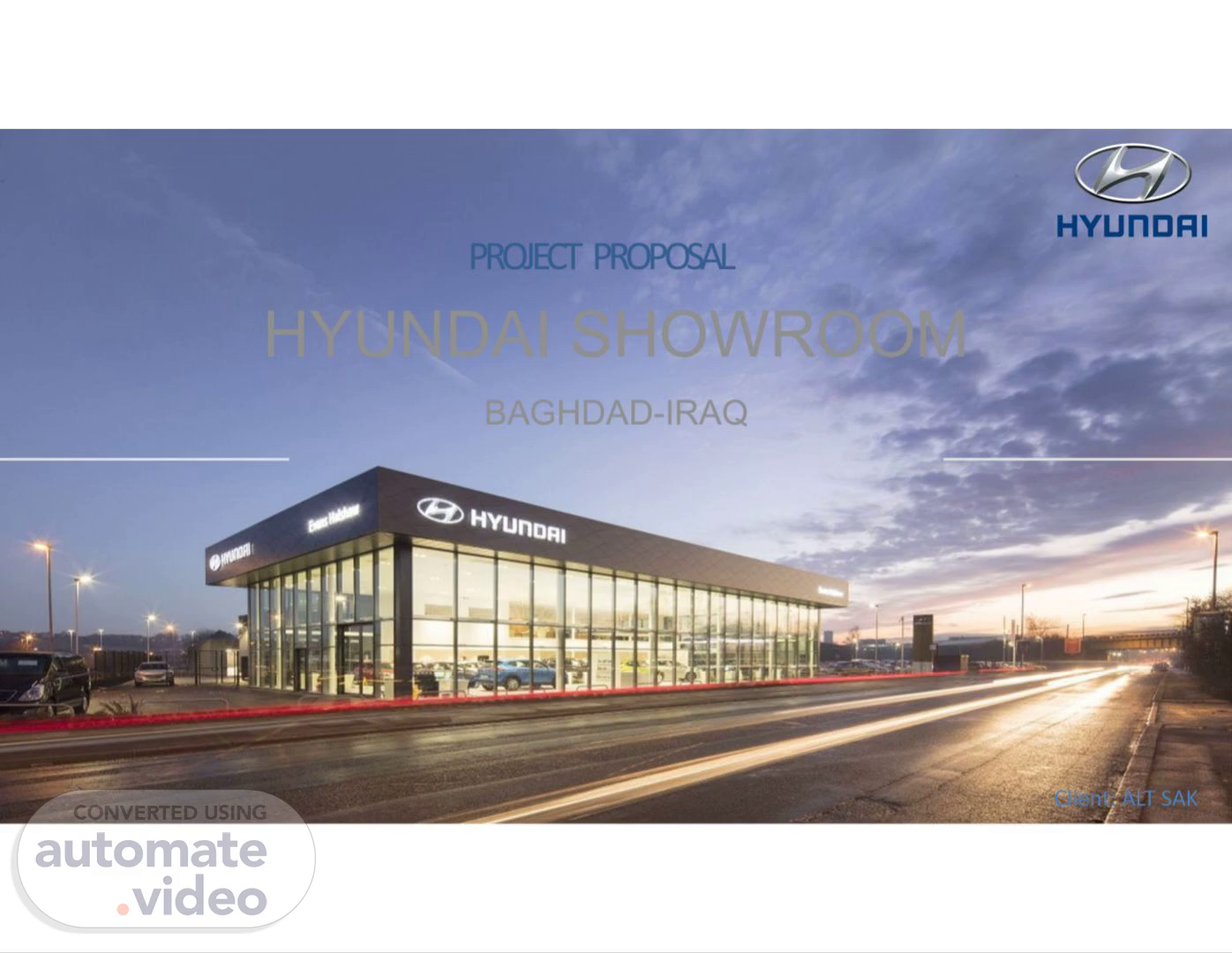

PROJECT PROPOSAL HYUNDAI SHOWROOM BAGHDAD-IRAQ Client: ALT SAK.

Exterior Inspirations 2.

PLAN MASTER 3.

GROUND FLOOR 4.

GROUND FLOOR 5 MEDIUM FORMAT 400-1200 m2 TOTAL AREA 808 m2 BACK OF THE HOUSE 22% = 178 m2 FRONT OF THE HOUSE 78% = 630 m2  Functional space 40-45% = 250 m2  Display space 55-60% = 380 m2 SHOWROOM COMPONENTS:  Welcome lounge  Consultation 4 rooms  Brand collection zone  Highlight zone  Car display: 9 cars + 1 in Highlight Zone  Configuration table 3 SHOWROOM.

GROUND FLOOR 6 MEDIUM FORMAT V3 530-1060 m2 TOTAL AREA 631 m2 SERVICE AREA COMPONENTS: 200 m2  Service reception area  Consultation 1 room  Brand collection zone  Service Customer Lounge WORKSHOP COMPONENTS: 431 m2  Quick Inspection Bay 2 (External)  Work Bay – 5 stalls  Unit repair room (A/T, ENG)  Tools storage  Parts shop BACK OF THE HOUSE : 100 m2 SERVICE CENTER  Oil storage (underground tank)  Generator Room (outside the building after approval of relevant stakeholder)  Waste storage  Compressor room.

FIRST FLOOR 7.

FIRST FLOOR 8 TOTAL AREA 375 m2 BACK OF THE HOUSE 100% = 375 m2 MAIN COMPONENTS:  CEO office  General manager  Finance manager  Meeting room 12 person  Accounts  Marketing  HR  IT  W.Cs  Lobby SHOWROOM.

FIRST FLOOR 9 MEDIUM FORMAT V3 530-1060 m2 TOTAL AREA 390 m2 WORKSHOP COMPONENTS: 230 m2  Main parts storage – including parts storage managers office  Warranty parts storage BACK OF THE HOUSE : 100 m2  Service center manager office  Accounts  Admin  Meeting BACK OF THE HOUSE : 60 m2  Resident staff accommodation 3 rooms each room 2-3 person SERVICE CENTER.

10 THANK YOU Client: ALT SAK.
