[Audio] This presentation is about Ground Proximity and Warning System in the Airbus A320 GPWS is to warn pilots when flight parameters exceed the safe flight envelope. Its main purpose is to prevent controlled flight into terrain accidents. Warning and alerts are generated as a result of changes in radar altimeter heights of rate of those changes. GPWS control panel in A320 located on the left side of the overhead panel GPWS pushbuttons functions: TERR pushbutton: it inhabits the Terrain Awareness Display and Terrain Clearance Floor modes. It does not affect the basic GPWS modes 1 to 5. System push button: it affects all GPWS basic modes 1 to 5. Amber light comes on if any modes 1 to 5 malfunction Glide slope mode pushbutton: it inhabits Mode 5 which is too far below glideslope Flap mode pushbutton: inhabits mode 4 which is too low flaps Landing flap 3 : to avoid nuisance warning during aircraft landing in flap 3. It will inhabit FLAP configuration 3..

Scene 1

ooo
aaov€
dV7d
aaon
SAS
SMdO
0000000
0000000
oto

[Audio] GPWS visual warnings are provided on the MISCELLANEOUS panels. From here the maintenance crew can test the system. EGPWS terrain display. A forward-looking capability for terrain, its purpose is to display terrain elevation surrounding the aircraft in color coded to avoid controlled flight into terrain and give enough time to the crew to perform an avoidance maneuver. Terrain information is displayed on ND by selecting either one of the TERR on ND pushbutton switch which are fitted on each side of the main panel..

Scene 2

Alåtude + 2mo
Ref Albtude +
Ref Alfitude -250/500
(Mamum Elevaton
Highest Band
Reference
Alttude
Middle Band
Red
Yellow
25% Yellow
Solid G reen
Green
(Minim-rn äev*ion
Green
Lovest Band
Black
Cyan
Reference
Altitude
(Maximurn Elevation Num±r)
Ref Alttude + 20m
Ref Altitude + I
Ref Alitude -
250/500
Ref Alitude
-1000
Ref Alitude -
2000
(Minimum Elevåion Nurnber)
Sea Level
Red
50% Yellow
25% Yellow
50% Green
Green
Black
Cyan

393
15
NGO
113
OBEDI 131
47NY
17:55
ADF
THR
20
CLB
HOG
20
API
1 f02
A/THR
e•17
20
—20600 —
.632
TAX

OT 00 000
00
00
cnnnn eoe•
00 ooo
000
n$nnö ou
ON NO

[Audio] Now let's talk about GPWS mode:
It contains 5 basic functions and 2 advanced functions which are enhanced function of GPWS GPWS will give out warnings in the form of sounds depending on the situation. Mode 1 alerts the crew of excessive rates in descent when the aircraft senses that its coming in close contact with the ground. Mode 1 has two boundaries. Penetration of the first boundary generates a repeated aural alert " SINK RATE" and causes the GPWS lights to come on. Penetration of the second boundary generates a repetitive " PULL UP" and illuminates both PULL UP lights..

Scene 3

MODE 1
Aural Alert
Aural Warning
Visual
- "SINK RATE"
"WHOOP WHOOP
PULL UP"
998FVM
1482FPM
2450Kr
"WHOOP WHOOP
PULL UP"
got-r
0
BAROMETRIC DESCENT RATE (FEET PER MINUTE)

[Audio] Mode 2 warns the flight crew of excessive closure rates with rapidly rising terrain. It triggers aural and visual alerts, based on the landing gear/ flaps configuration of the aircraft, the radio height, and the RA rate of change. There are two types of Mode 2 alerts; Mode 2A (active during climb, cruise, and initial approach) and Mode 2B (active during approach and 60s after takeoff). Mode 3 warns the crew of inadvertent decants, and loss of altitude after takeoff, or during missed approach If the aircraft descends during the initial takeoff climb or during a go around, the PULL UP light comes on and the aural alerts " DON'T SINK" sounds repeatedly..

Scene 4

Aural Alert
0.
"DON'T SINK"
MODE 3
Visual
1333
30
o
20
PULLUP
128
DON' SINK"
120 140
BAROMETRIC ALTITUDE LOSS (FEET)

Aural Alert
Aural Warning
Visual
MODE 2
2500
'TERRAIN, TERRAIN"
"WHOOP WHOOP
PULL UP"
PULL UP
10
500
1219
789 —
UPFr Limit
Baro Rate
FPM
Lower Limit
Bam Rate
s 4m FT'M
pper larnit
310KTS
'WHOOP
WHOOP
PULL UP'
MODE 2A
'TERRAI . TERRAIN'
'WHOOP WHOOP
PULLUP'
MODE 2B
MODE
MODE
2B
70
10 20 40 50
CLOSURE RATE (FEET PER MINUTE)

[Audio] Mode 4 provides minimum terrain clearance protentional in all phases of flight. There are three types of Mode 4 alerts, Mode 4A and Mode 4B (both active during cruise and approach), and Mode 4C active during takeoff.
Mode 4A and Mode 4B trigger aural and visual alerts when terrain clearance is not sufficient based on the phase of flight, the configuration of the landing gear and the flaps, and the speed. Mode 4C triggers aural and visual alerts based on the minimum terrain clearance and the radio height of the aircraft. Mode 5 provides protection for inadvertent decent a glide slopes while on an ILS approach. GPWS monitors the flight path in relative to the glideslope centerline while on the ILS final approach course..

Scene 5

MODE 5
Aural Alert
Visual
"GLIDE SLOPE"
BELOW G/
P TO INHIBIT
10 FTEr
800
sopr ALERTING AREA
HARD ALERTING AREA

ural Alert
"TOO LOW FLAP" or
TOO LOW TERRAIN"
ural Alert
"TOO LOW GEAR"
roo LOW TERRAIN"
Visual
PULL UP
MODE 4
1000
"TOO LOW GEAR"
245
'TOO LOW FLAPS"
190 KTS
250 KTS
"TOO LOW
30
0
50
100
150
200
350
AIRSPEED (KNOTS)

[Audio] Mode 6 contains altitude and bank angle callout function, its designed to increase situational awareness for the flight crew. Mode 7 is the enhanced function of the GPWS. It uses airspeed, radar altitude, barometric rate, angle of attack, air temperature, vertical and longitudinal acceleration, and aircraft – specific performance information to detect encounters with windshear. When an aircraft first encounters a strong headwind, decreasing tailwinds and vertical updrafts associated with the outflow of microburst activity, the amber GPWS windshear alert light will illuminate along with a voice alert " CAUTION, WINDSHEAR". Thank you for your attending!.

Scene 6

xvkNnu
Jsxngoxoxw
i8V3HsaNlM
i uvaHsaNIH
dWV1 NOILnvo
uv3HsaNlM

Callout Voice
Radio Altimeter
Twen ve hundred
One Thousand
Five Hundred smart
A
One Hundred
For
Thir
Twen
Ten
roachin Minimums
Minimums
Decision Hei ht
Mode 6
Descri tion
Activates at 2500 feet as radio altimeter comes into track
alternate to Radio Altimeter
Activates at 1000 feet AGL
Activates at 500 feet AGL for non- recision a roaches onl
Activates at 100 feet AGL
50 feet AGL
40 feet AGL
30 feet AGL
20 feet AGL
10 AGL
100 feet above the selected decision hei t
At ilot selected decision hei ht—ma be AGL or barometric
alternate to Minimums

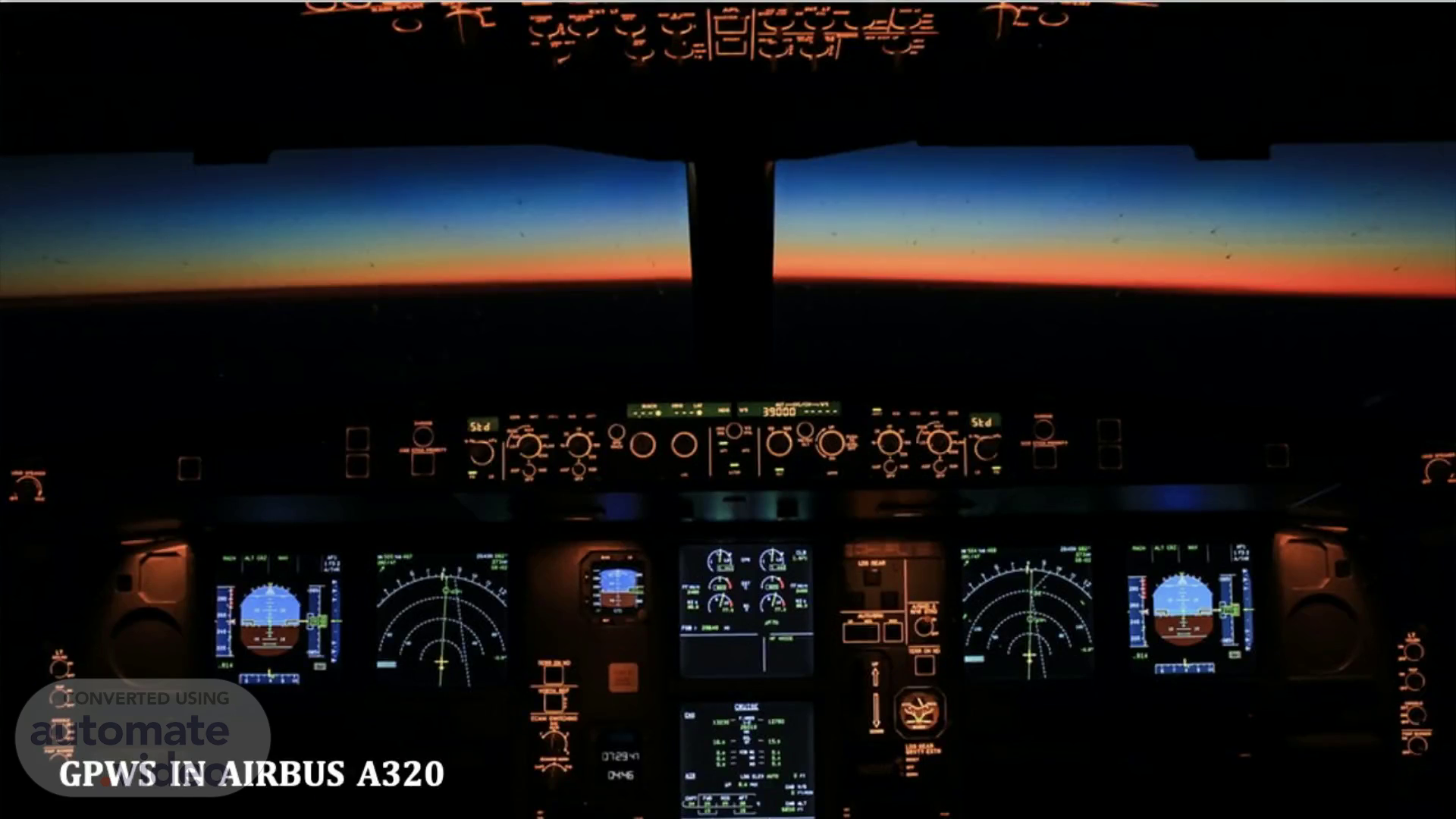

GPWS IN AIRBUS A320

This presentation is about Ground Proximity and Warning System in the Airbus A320

GPWS is to warn pilots when flight parameters exceed the safe flight envelope.

Its main purpose is to prevent controlled flight into terrain accidents.

Warning and alerts are generated as a result of changes in radar altimeter heights of rate of those changes.

GPWS control panel  in A320 located on  the left side of the overhead panel

it inhabits the Terrain Awareness Display and Terrain Clearance Floor modes.

It does not affect the basic GPWS modes 1 to 5.

Amber light comes on if any modes 1 to 5 malfunction

it inhabits Mode 5 which is too far below glideslope

to avoid nuisance warning during aircraft landing in flap 3.

avatar

GPWS visual warnings are provided on the MISCELLANEOUS panels.

From here the maintenance crew can test the system.

A forward-looking capability for terrain, its purpose is to display terrain elevation surrounding the aircraft in color coded to avoid controlled flight into terrain and give enough time to the crew to perform an avoidance maneuver.

Terrain information is displayed on ND by selecting either one of the TERR on ND pushbutton switch which are fitted on each side of the main panel.

It contains 5 basic functions and 2 advanced functions  which are enhanced function of GPWS

GPWS will give out warnings in the form of sounds depending on the situation.

Mode 1 alerts the crew of excessive rates in descent when the aircraft senses that its coming in close contact with the ground.

Penetration of the first boundary generates a repeated aural alert "SINK RATE" and causes the GPWS lights to come on.

Penetration of the second boundary generates a repetitive "PULL UP" and illuminates both PULL UP lights.

Mode 2 warns the flight crew of excessive closure rates with rapidly rising terrain.

It triggers aural and visual alerts, based on the landing gear/flaps configuration of the aircraft, the radio height, and the RA rate of change.

Mode 2A (active during climb, cruise, and initial approach) and Mode 2B (active during approach and 60s after takeoff).

Mode 3 warns the crew of inadvertent decants, and loss of altitude after takeoff, or during missed approach If the aircraft descends during the initial takeoff climb or during a go around, the PULL UP light comes on and the aural alerts "DON'T SINK" sounds repeatedly.

Mode 4 provides minimum terrain clearance protentional in all phases of flight.

There are three types of Mode 4 alerts, Mode 4A and Mode 4B (both active during cruise and approach), and Mode 4C active during takeoff.

Mode 4A and Mode 4B trigger aural and visual alerts when terrain clearance is not sufficient based on the phase of flight, the configuration of the landing gear and the flaps, and the speed.

Mode 4C triggers aural and visual alerts based on the minimum terrain clearance and the radio height of the aircraft.

Mode 5 provides protection for inadvertent decent a glide slopes while on an ILS approach.

GPWS monitors the flight path in relative to the glideslope centerline while on the ILS final approach course.

Mode 6 contains altitude and bank angle callout function, its designed to increase situational awareness for the flight crew.

Mode 7 is the enhanced function of the GPWS.

It uses airspeed, radar altitude, barometric rate, angle of attack, air temperature, vertical and longitudinal acceleration, and aircraft – specific performance information to detect encounters with windshear.

When an aircraft first encounters a strong headwind, decreasing tailwinds and vertical updrafts associated with the outflow of microburst activity, the amber GPWS windshear alert light will illuminate along with a voice alert " CAUTION, WINDSHEAR".
