3D MODEL DESIGN

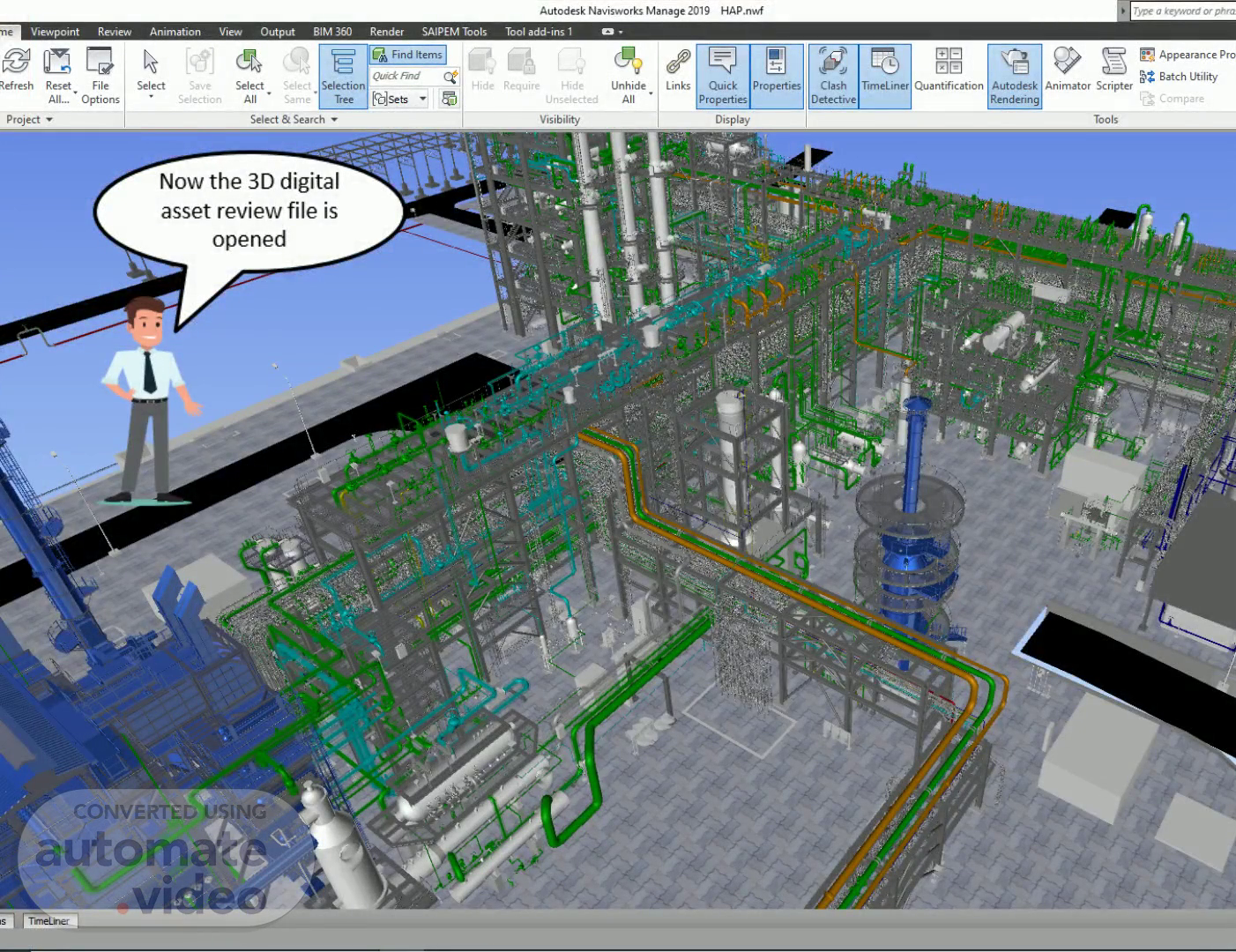

[Audio] Now the 3D digital asset review file is opened.

[Audio] We can see Saipem tools available in Navis works panel. Click the Saipem tools.

[Audio] After clicking Saipem tools, you can view Data tools for 3D digital asset reviewer.

[Audio] In data tool, click IFF. You can have 3D digital asset data manager in your screen.

[Audio] In data manager tool, You can view list of units as per our project scope. Please select single or multiple unit as required.

[Audio] After selecting unit, you can find relevant Area/ WBS in area description tab. Please select the required WBS..

[Audio] After selecting unit and its area, click show to populate the project master tag data in data manager window.

[Audio] You can view all discipline data relevant to selected unit and its area. Same time items, listed items are selected in 3D model for visualization. You can view the status of each tag's ( Engineering, Procurement and Construction status) based on maturity of the project..

[Audio] Now, we can see the status of equipment. In discipline column, select equipment and deselect all other disciplines.

Import Tabs links 90 IFF Remove Ta bs/Links Select By Model Data Tools Autodesk Navisworks Msnsge NAME - .szc-oocg * u i g Tet COZ rg_St2tuE Issus. Issus' FOR FOR comsrmucrox Tct*7 30 _St2tÆ Not Issue TEE issue TEE C: Au nuf.

Impon labs Import links IFF Remove TabsdLinks Select By Mode Too Ci,i Ci,-i Cili Cili ISEl_.z ccxn•ucnc'. ISSUE' ISSUE' 150 100 50 120 80 120 60 100 80 40 Engineeri Total - 23 TO - 23 Works em *tea am *tea.
