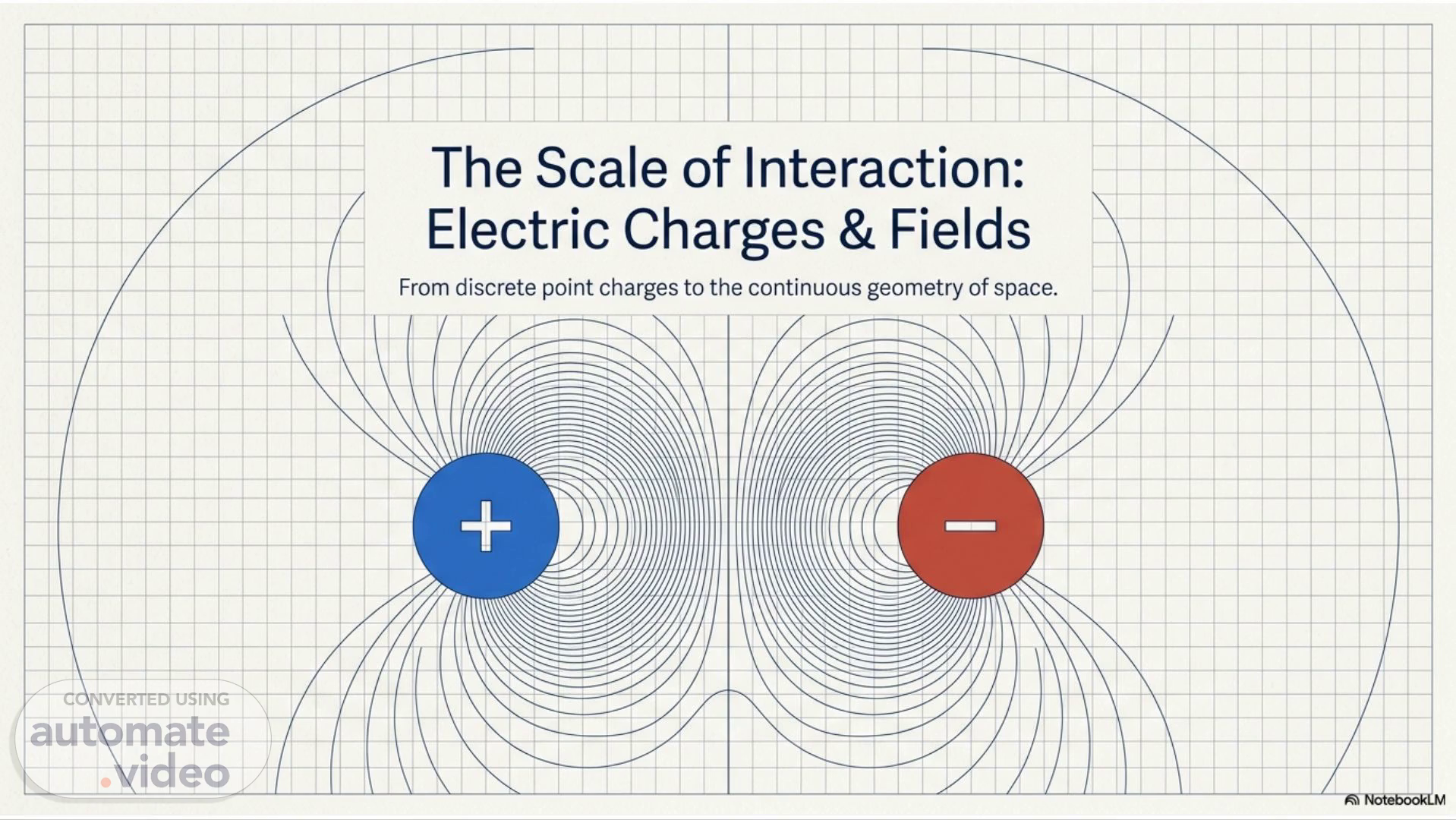

The Scale of Interaction: Electric Charges & Fields From discrete point charges to the continuous geometry of space. 1.

The Observation Around 600 BC, the Greeks discovered that rubbing amber (elektron) with wool attracted light objects. Today, we know friction transfers subatomic particles, breaking the exact balance of neutral matter. The Polarity Rule 4.0 Like charges repel. Unlike charges attract. NotebookLM.

Detecting the Invisible: The Electroscope 2. Flow: Excess charge flows down the conductive metal rod. 1. Contact: A charged object touches the metal knob. 3. Divergence: Both gold leaves acquire the same polarity. Because like charges repel, they push apart. The angle of divergence indicates the amount of charge. NotebookLM.

Mediums of Interaction Dimensions Charge Mobility Surface Distribution Everyday Materials Conductors High. Electrons are comparatively free to move inside the material. Charge readily distributes over the entire surface. Metals, earth, human body. Insulators Low. Electrons are tightly bound to their atoms. Charge stays exactly where it was placed. Glass, plastic, nylon, wood. NotebookLM.

The Rules of the Entity: Properties of Charge Additivity Charges are scalars and add algebraically, accounting for positive and negative signs. qtotal ql + q2 + + qn Conservation In an isolated system, no new charges are created or destroyed, only transferred. Aqsystem = Quantisation All free charges are integral multiples of a basic unit (e). Charge is grainy, not continuous. q = ne (where e = 1.602 x 10-19 C) NotebookLM.

Scaling Up: The Interaction (Coulomb's Law) Force vector pushing or pulling the charges. II -Imq21 47teo r F21 12 The magnitude of the point charges. (12 Force drops off exponentially with distance (Inverse-Square Law). Permittivity of free space. Dictates how easily the vacuum allows electric forces to permeate. NotebookLM.

The Magnitude of Interaction: Electrostatic vs. Gravity Gravitational Force mpme 2 Inside a nucleus. • 1.9 x 10-34N Electrostatic Force 47TE0 r2 Inside a nucleus: 230 N The Electrostatic force is —1039 times stronger than Gravity. It is the invisible glue of the entire macroscopic world. NotebookLM.

Many Entities: The Principle of Superposition (12 12 (11 13 (13 Forces are strictly independent. The total force on a charge is the exact vector sum of all individual Coulomb forces acting on it. The geometry of the charges dictates the final motion. NotebookLM.

The Problem of "Action at a Distance" The Force View (Algebraic) Charge A Charge B Coulomb's Law requires two charges to exist simultaneously. But if Charge A moves, how how does Charge B know instantly? It violates the speed of light constraint. The Field View (Geometric) Charge A A charge alters the geometry of the space around it, creating a Field. Charge B doesn't interact with Charge A; it interacts with the local field at its exact coordinates. The field accounts for the time delay. NotebookLM.

Formalizing the Electric Field E = lim The Source (Q): The creator of the field. It alters the surrounding geometric space. The Test Charge (q): An infinitesimally small charge used to map the field without disturbing the source. The Field (E): The force a unit positive charge would experience if placed at that exact spatial coordinate. Sl Unit: Newtons per Coulomb (N/C). NotebookLM.

Field Line Anatomy: The Rules of Drawing Space zan Origin and Terminus Densit = Strength No Crossing No Crossing •anannnn Continuous Curves Lines can never cross. If they did, Lines can never cross. If they did, the field would have two different the field would have two different In a charge-free vacuum, directions ata single point, which directions ata single point, which field lines form continuous, is physically impossible. is physically impossible. unbroken curves. NotebookLM.

Electric Flux: Quantifying the Flow 0 = 900 Maximum Flux AS o = 00 Partial Flux AS 0 = 450 E • AS coso Zero Flux AS Electric Flux measures the amount of electric field piercing a specific surface. The angle of the surface normal vector (cos0) determines how much 'flow' is captured..

Synthesis: From Micro to Macro The Measurement AS Electric Flux. The geometric quantifica-- tion of the field across a continuous surface. The Entity Charge. The fundamental, discrete property of matter. The Interaction Coulomb's Law. Algebraic action between two discrete entities. The Environment Electric Field. The continuous topological modification of surrounding space..
