DS_EiB3016_V2_APPROVED

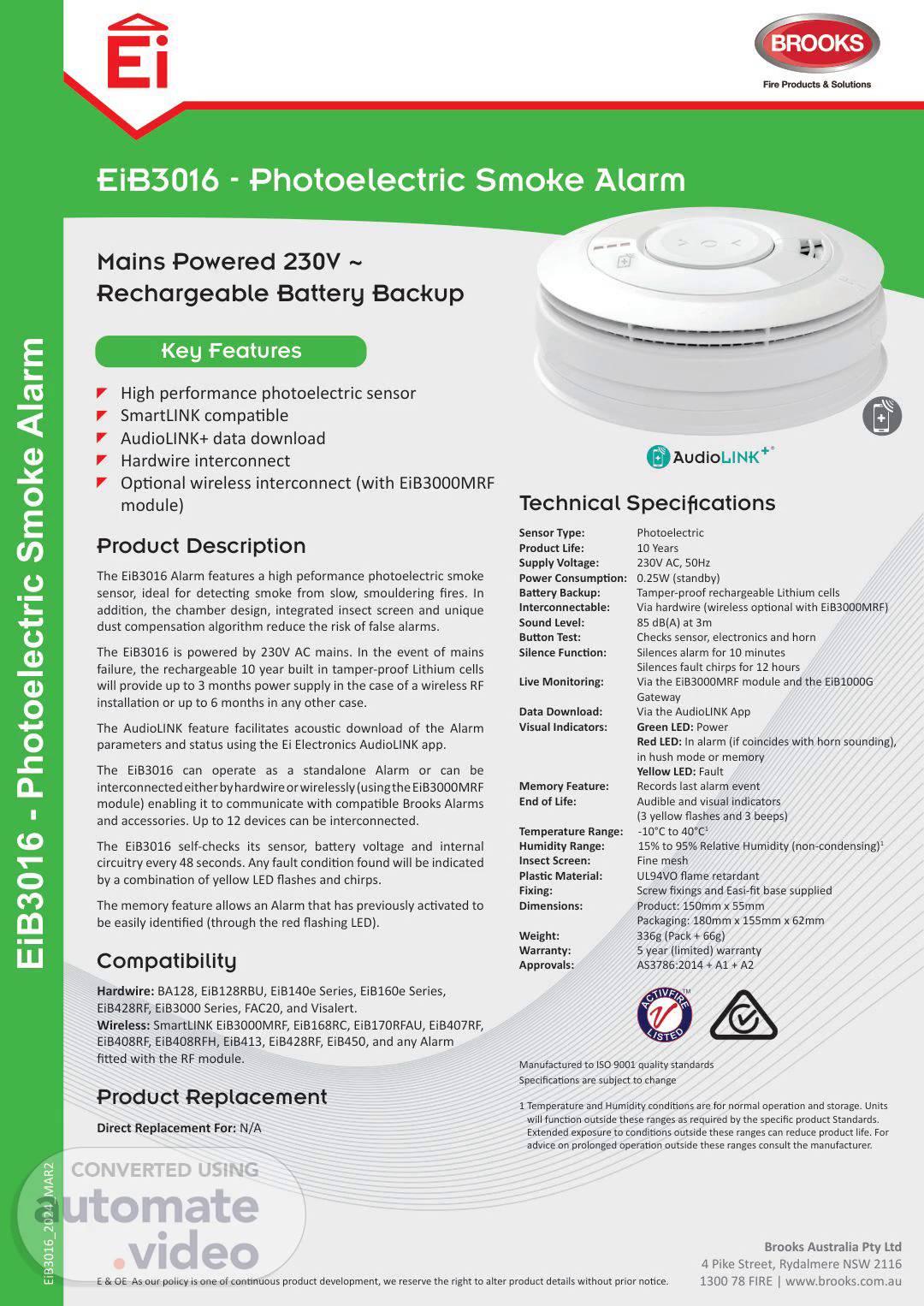

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Brooks Australia Pty Ltd 4 Pike Street, Rydalmere NSW 2116 1300 78 FIRE | www.brooks.com.au EiB3016_2024_MAR2 EiB3016 - Photoelectric Smoke Alarm Mains Powered 230V ~ Rechargeable Battery Backup EiB3016 - Photoelectric Smoke Alarm Key Features Product Description The EiB3016 Alarm features a high peformance photoelectric smoke sensor, ideal for detecting smoke from slow, smouldering fires. In addition, the chamber design, integrated insect screen and unique dust compensation algorithm reduce the risk of false alarms. The EiB3016 is powered by 230V AC mains. In the event of mains failure, the rechargeable 10 year built in tamper-proof Lithium cells will provide up to 3 months power supply in the case of a wireless RF installation or up to 6 months in any other case. The AudioLINK feature facilitates acoustic download of the Alarm parameters and status using the Ei Electronics AudioLINK app. The EiB3016 can operate as a standalone Alarm or can be interconnected either by hardwire or wirelessly (using the EiB3000MRF module) enabling it to communicate with compatible Brooks Alarms and accessories. Up to 12 devices can be interconnected. The EiB3016 self-checks its sensor, battery voltage and internal circuitry every 48 seconds. Any fault condition found will be indicated by a combination of yellow LED flashes and chirps. The memory feature allows an Alarm that has previously activated to be easily identified (through the red flashing LED). Technical Specifications Sensor Type: Photoelectric Product Life: 10 Years Supply Voltage: 230V AC, 50Hz Power Consumption: 0.25W (standby) Battery Backup: Tamper-proof rechargeable Lithium cells Interconnectable: Via hardwire (wireless optional with EiB3000MRF) Sound Level: 85 dB(A) at 3m Button Test: Checks sensor, electronics and horn Silence Function: Silences alarm for 10 minutes Silences fault chirps for 12 hours Live Monitoring: Via the EiB3000MRF module and the EiB1000G Gateway Data Download: Via the AudioLINK App Visual Indicators: Green LED: Power Red LED: In alarm (if coincides with horn sounding), in hush mode or memory Yellow LED: Fault Memory Feature: Records last alarm event End of Life: Audible and visual indicators (3 yellow flashes and 3 beeps) Temperature Range: -10°C to 40°C1 Humidity Range: 15% to 95% Relative Humidity (non-condensing)1 Insect Screen: Fine mesh Plastic Material: UL94VO flame retardant Fixing: Screw fixings and Easi-fit base supplied Dimensions: Product: 150mm x 55mm Packaging: 180mm x 155mm x 62mm Weight: 336g (Pack + 66g) Warranty: 5 year (limited) warranty Approvals: AS3786:2014 + A1 + A2 Manufactured to ISO 9001 quality standards Specifications are subject to change Compatibility Direct Replacement For: N/A Product Replacement 1 Temperature and Humidity conditions are for normal operation and storage. Units will function outside these ranges as required by the specific product Standards. Extended exposure to conditions outside these ranges can reduce product life. For advice on prolonged operation outside these ranges consult the manufacturer. High performance photoelectric sensor SmartLINK compatible AudioLINK+ data download Hardwire interconnect Optional wireless interconnect (with EiB3000MRF module) Hardwire: BA128, EiB128RBU, EiB140e Series, EiB160e Series, EiB428RF, EiB3000 Series, FAC20, and Visalert. Wireless: SmartLINK EiB3000MRF, EiB168RC, EiB170RFAU, EiB407RF, EiB408RF, EiB408RFH, EiB413, EiB428RF, EiB450, and any Alarm fitted with the RF module. AudioLINK.
