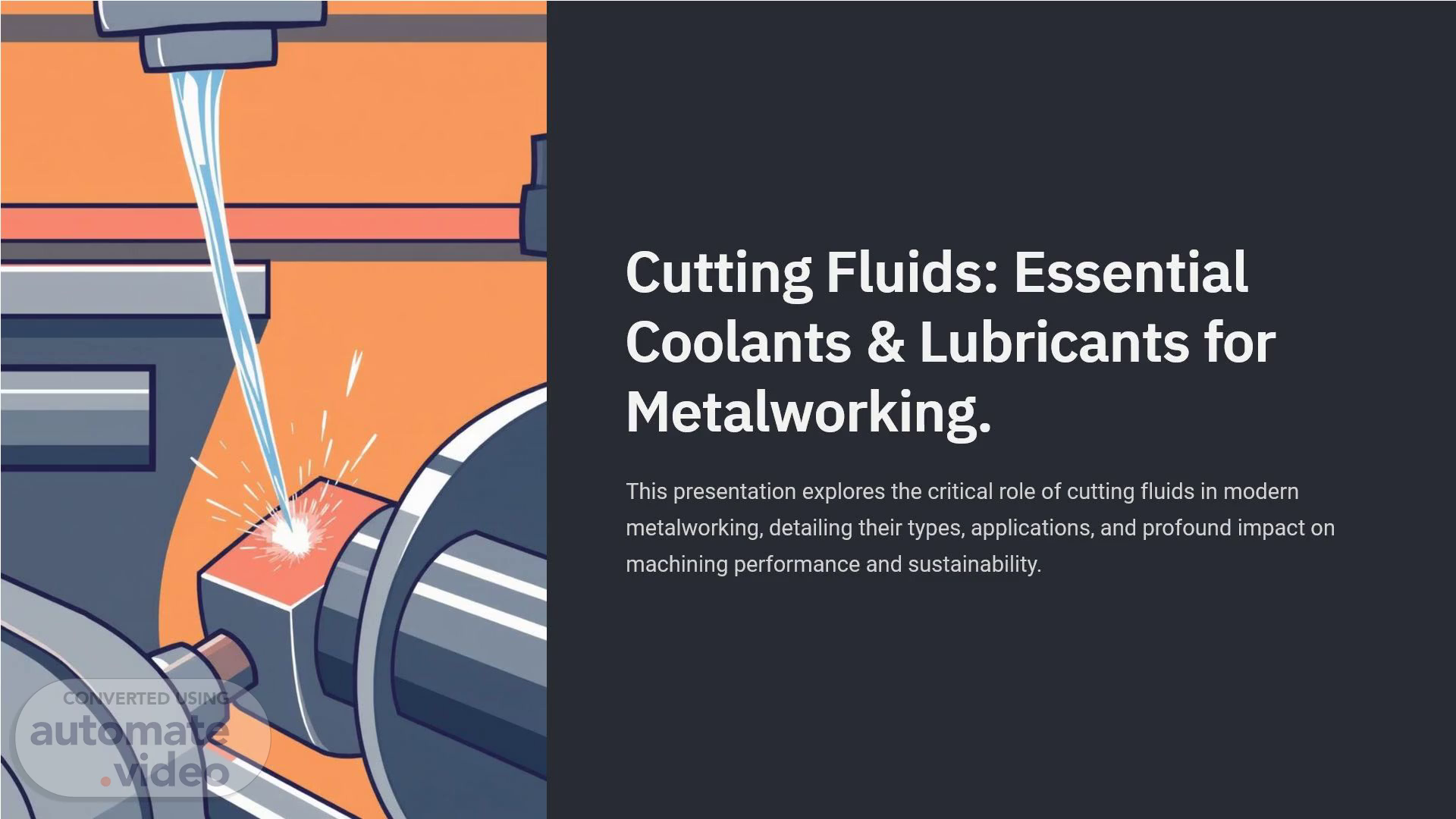

Cutting Fluids: Essential Coolants & Lubricants for Metalworking. This presentation explores the critical role of cutting fluids in modern metalworking, detailing their types, applications, and profound impact on machining performance and sustainability.

What Are Cutting Fluids? Cutting fluids are specialized liquids or gases applied at the tool-workpiece interface during machining operations. Their primary functions are to cool the cutting zone and provide lubrication, significantly improving overall cutting efficiency. Cooling: Dissipates heat generated by friction and plastic deformation. Lubrication: Reduces friction between the tool and workpiece, preventing built-up edge (BUE). Types: Commonly include cutting oils, emulsifiable (soluble) oils, and synthetic (chemical) fluids, each suited for different applications. preencoded.png 2.

[Audio] Why to Use Cutting Fluids? Cutting fluids are indispensable in metalworking for several critical reasons: preencoded.png preencoded.png 1.Heat Reduction: 2.Friction Control: They actively cool the cutting zone, reducing thermal deformation and extending tool life by preventing overheating. Lubrication lowers friction between the tool face and chip, preventing tool wear and the formation of built-up edge (BUE). preencoded.png preencoded.png 3.Corrosion Protection: 4.Surface Enhancement: Fluids protect both the tool and workpiece from rust and corrosion, preserving their integrity and finish. By optimizing cutting conditions, they significantly enhance the surface finish of machined parts and enable higher machining speeds. 3.

[Audio] Types of Cutting Fluids : 1.Cutting Oils : preencoded.png Description: Derived from mineral or vegetable oils, often with additives. Properties: Excellent lubricity for heavy-duty cutting, but provide less cooling. Applications: Threading, tapping, gear cutting, and other operations requiring high lubrication. 2.Emulsifiable Oils : Description: Oil concentrates that form an emulsion when mixed with water. Properties: Balanced cooling and lubrication, good rust protection. Applications: General machining, turning, milling, and drilling. 3.Synthetic Fluids : Description: Water-based chemical solutions with no oil content. Properties: Superior cooling, very clean, long sump life, but lower lubricity. Applications: Grinding, high-speed machining, and operations where cooling is paramount. 4.

[Audio] Characteristics of a Good Cutting Fluid: preencoded.png preencoded.png preencoded.png High Cooling & Lubricity: Rancidity & Rust Stability: Low Viscosity: Efficiently dissipates heat and reduces friction for optimal performance. Ensures easy flow and penetration to the cutting zone, even in tight spaces. Resists bacterial growth and prevents corrosion of tools and workpieces. preencoded.png preencoded.png Non-Toxic & Transparent: Non-Flammable: Safe for operators, allows clear visibility of the machining process. Crucial for safety, especially in high-temperature machining operations. 5.

[Audio] Methods of Applying Cutting Fluids: Manual Drip: Simple, controlled drops for light operations. preencoded.png Flooding: High-volume delivery for maximum cooling and chip removal, common in CNC machines. Mist Spray: Fine droplets delivered by compressed air, ideal for hard-to-reach areas and minimal fluid use. High-Pressure Delivery: Through nozzles or internal tool channels, forcing fluid directly to the cutting edge for deep penetration. 6.

[Audio] Cutting Fluids Impact on Machining Performance: The strategic use of cutting fluids profoundly influences machining efficiency: preencoded.png preencoded.png 1.Reduces Heat: 2.Lowers Power Consumption: Minimizes thermal expansion and deformation, maintaining dimensional accuracy. Reduced friction means less energy is required, leading to cost savings. preencoded.png preencoded.png 3.Prevents BUE & Improves Finish: 4.Enables Higher Speeds: Extends tool life and ensures superior surface quality. Facilitates aggressive cutting parameters, significantly boosting productivity. 7.

[Audio] Innovation Spotlight: Minimum Quantity Lubrication (MQL). preencoded.png MQL represents a significant advancement in cutting fluid technology. Instead of flooding the cutting zone, MQL systems deliver precise, minute amounts of lubricant in an air stream directly to the cutting interface. Benefits: Eliminates messy coolant sumps, reduces fluid consumption by up to 90%, extends tool life, and improves chip management. Environmental Impact: Less fluid waste, reduced energy for fluid management, and often utilizes biodegradable lubricants. Example: Systems like Unist Coolube® exemplify MQL's capability to deliver precise amounts of fluid, creating cleaner and safer machining environments while maintaining high performance. 8.

[Audio] Environmental & Economic Benefits: Adopting optimized cutting fluid strategies brings substantial advantages beyond machining performance: 75% 20% 1.Waste Reduction. 2.Cost Savings. Significant decrease in coolant disposal costs and environmental impact, especially with MQL and advanced filtration. Lower labor for fluid maintenance, reduced tool wear, and less downtime translate to considerable operational savings. 100% 50% 3.Operator Safety. 4.Sustainability. Fewer aerosols, less skin irritation, and cleaner workspaces enhance operator health and safety. Supports eco-friendly manufacturing through biodegradable fluids and reduced resource consumption. 9.

[Audio] preencoded.png Conclusion: Cutting Fluids Drive Precision & Efficiency. Cutting fluids are not just an accessory; they are an essential component of modern metalworking, crucial for balancing speed, quality, and tool life. Advances like Minimum Quantity Lubrication (MQL) are paving the way for more sustainable and efficient machining practices. Choosing the right fluid and application method is paramount for maximizing ROI and performance. Explore cutting fluid solutions tailored to your machining needs to unlock peak performance! preencoded.png 10.
