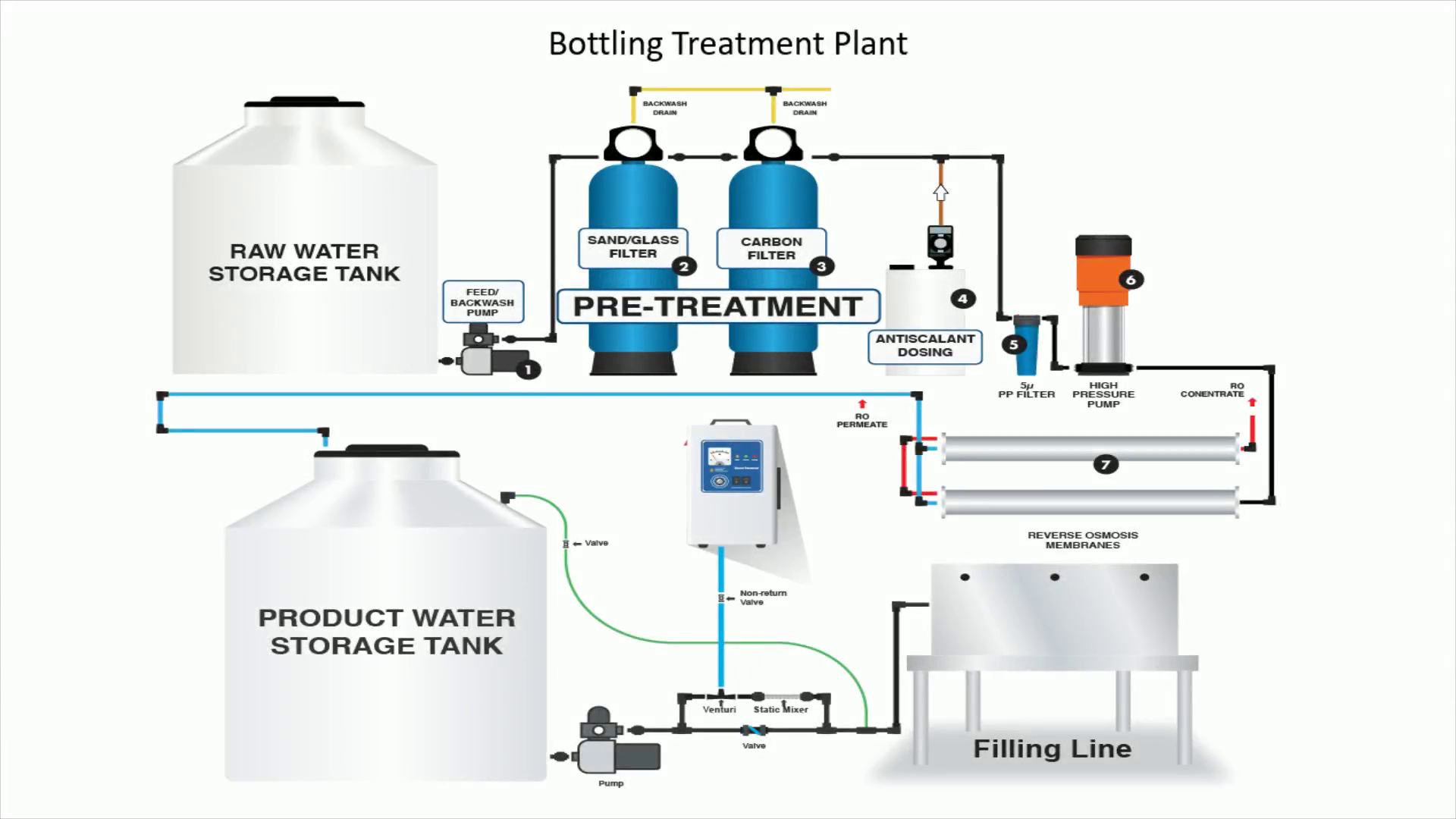

Bottling Treatment Plant. Graphical user interface.

Water comes in @raw Water Tank. Pumping then through the Sand filter to remove sediment. From there it goes to the Carbon filter to remove Chlorine, taste, and odor, and crystalize the water. The next step is to get the scaling and hardness out of the water this is done through the dosing of the already clean water to prevent the membrane on the Purifier to block up. The water is softer and would not damage the membrane. After the membrane, the still water goes into a steel storage tank where it is stored until you want to fill the clients’ bottles. Then it goes through a pump UV light to kill any bacteria. For Still water it goes through 2 filters 1 st it is alkaline balls then it is carbon for taste and to clear the water so when it is poured into a glass it is crystal clear. For Alkaline BIO + water it goes through a filter with 4 stages it is alkaline balls then it is carbon and some for taste and to clear the water so when it is poured into a glass it is crystal clear. The PH is between 8.5 and 10 +This gives good hydration. Boosts Immunity. Facilitating antiaging of skin and organs. Help to remove antioxidants from the medicine given to Covid patients. Help to remove unwanted fat from the body. Remove toxic waste from the body..
