Scene 1 (0s)

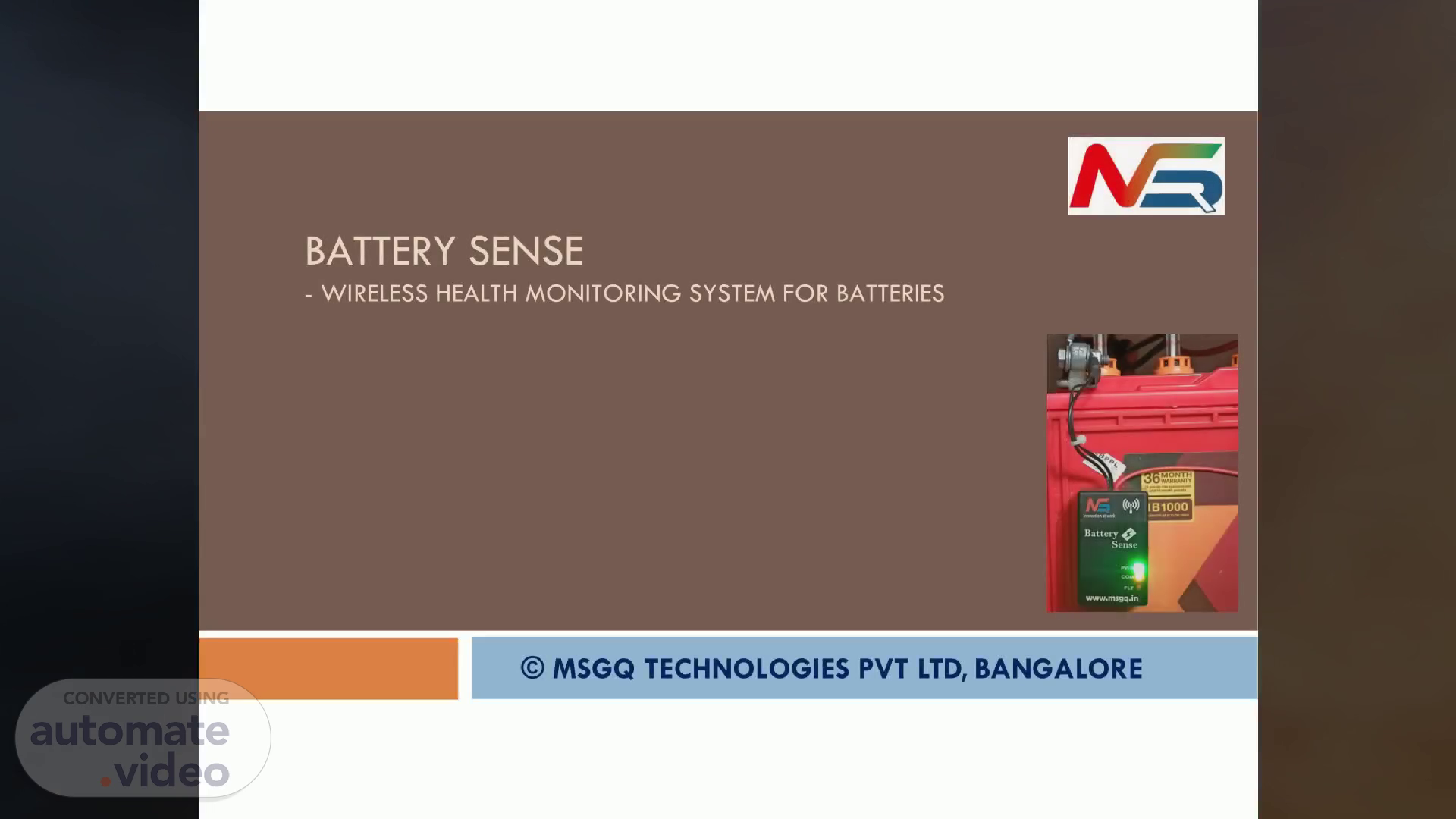

BATTERY SENSE - WIRELESS HEALTH MONITORING SYSTEM FOR BATTERIES

IBIopp Battery Sense

© MSGQ TECHNOLOGIES PVT LTD, BANGALORE

Scene 2 (10s)

CHALLENGES WITH BATTERY SYSTEMS

 TRACKING OF BATTERY PERFORMANCE

 IDENTIFICATION OF FAULTY BATTERY CELLS

 REPLACES THE BATTERY STRING INSTEAD OF BATTERY CELLS

 TRACKING OF EXCESS HEAT GENERATION FROM THE FAULTY CELLS

 BATTERY OVER CHARGING CONDITION FOR MANY DAYS

 TRACKING OF BATTERY STRING PERFORMANCE

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 3 (31s)

CHALLENGES WITH BATTERY SYSTEMS

 TRACKING OF BATTERY EFFICIENCY

 TRACKING OF BATTERY OPERATING IDLE CONDITIONS

 PHYSICAL AND MANUAL INTERVENTION MONITORING

 SUDDEN DOWNTIME DUE TO NO REGULAR MAINTENANCE

 PREVENTIVE MAINTENANCE

 INVOLVE COST OF REPAIRING THE WHOLE BATTERY SYSTEMS

 NO TRACKING OF CHARGE / DISCHARGE CYCLES

 BATTERY CHARGERS QUALITY ISSUES

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 4 (51s)

INTRODUCING BATTERY SENSE

 REALTIME BATTERY DATA MONITORING

 IDENTIFIES THE FAULTY BATTERY CELLS

 GIVES HEALTH STATUS OF THE BATTERY

 PROVIDES BATTERY HEALTH PARAMETERS

 PROVIDES ANALYSIS OF THE BATTERY USAGE

 AVOID UNEXPECTED BATTERY FAILURES

 AVOID FIRE & EXPLOSION WITH FAULTY CELLS

 IDENTIFIES THE HEAT GENERATED BY FAULTY CELL

 IDENTIFIES THE QUALITY OF THE CHARGER

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 5 (1m 14s)

INTRODUCING BATTERY SENSE

 HELPS TO IMPROVE THE REPLACEMENT OF THE FAULTY BATTERY CELLS

 EXTENDS THE BATTERY LIFE BY REPLACING THE FAULY CELLS

 OPTIMIZE THE BATTERY LIFE BY REPLACING THE CELLS AT THE CORRECT PERIOD

 REDUCE THE MAINTENANCE BY REMOTE MONITORING SOFTWARE

 PREVENTVE MAINTENANCE AS ALERTS SENT TO FIELD PERSONNAL

 HELPS TO IMPROVE THE BATTERY LIFE BY IDENTIFY THE BATTERY PROBLEMS

 AVOID THE COSTLY DOWNTIME DUE TO SUDDEN FAILURES

 SAVES THE COST OF FULL BATTERY SYSTEM REPLACEMENT

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 6 (1m 40s)

BATTERY SENSE - FEATURES - STRING

Bittery Sense

 BATTERY STRING LIVE MONITORING LIKE VOLTAGES,CURRENTS

 MONITORS THE HEALTH PARAMETERS OF BATTERY LIKE SOC,SOH

 MONITORS THE BATTERY ENERGY CHARGE / DISCHARGE TRENDS

 MONITORS THE WEATHER PARAMETERS

 MONITORS THE BATTERY EFFICIENCY

String

 IOT PLUG-IN FOR INTRANET AND INTERNET CONNECTIVITY

 INDUSTRIAL COMMUNICATION PLUG-IN FOR SYSTEM INTEGRATORS

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 7 (2m 3s)

 WIRELESS COMMUNICATION TO SHARE THE BATTERY

PARAMETERS

 MONITORS THE BATTERY CELL VOLTAGES

 MONITORS THE BATTERY CELL TEMPERATURES

 MONITORS THE RIPPLE VOLTAGES

MONITORS THE HEALTH PARAMETERS

BATTERY SENSE - FEATURES - CELL

 MONITORS THE HEALTH PARAMETERS

 LED INDICATORS FOR PHYSICAL VERIFICATION

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 8 (2m 22s)

WHY BATTERY SENSE

 COST AND TIME SAVING

 Minimize the travel to remote locations

 Minimize time spent on data collections

 Automatic reports

 Optimize the labor hours for monitoring  Optimize the labor hours for monitoring

 Alarms are sent to maintenance team

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 9 (2m 39s)

WHY BATTERY SENSE

 BATTERY REPLACEMENTS IMPROVMENTS

 Detect weak or damaged batteries in early stages

 Timely replacement of bad batteries thereby improving lifespan of the entire

battery system

 Analyze and replace poor performing batteries

 EASY INSTALLATION AND MAINTENANCE

 Wireless connectivity from cells to string

 Hassle free installation for replacements

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 10 (2m 59s)

BATTERY SENSE - COMPATABILITY

 BATTERY TYPES:

 Compatibility with all kind of batteries : Lead-Acid, Tubular, LiIon , VRLA etc

 String Voltage compatibility : Up to-1100 VDC

 String Current compatibility : Up to- 800 Amps

 Cell compatibility : 2/12/24VDC

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 11 (3m 18s)

BATTERY SENSE – WEB & ALERTING SYSTEM

 REAL TIME MONITORING OF BATTERY PARAMETERS

 STRING WISE , CELL WISE MONITORING

 BATTERY GRAPHS AND LIVE TRENDS

 BATTERY CHARGE AND DISCHARGING ANALYSIS

 REPORTS – DAILY ,MONTHLY

 CENTRALISED REPORTING SYSTEM

 CLOUD CONNECTIVITY

 CRITICAL ALERTS TO FIELD PERSONNAL – MAINTENANCE

 MOBILE APP (OPTIONAL)

Copyright MsgQ Technologies Pvt Ltd, connect@msgq.in

Scene 12 (3m 39s)

CONNECT WITH US FOR MORE QUERIES

MsgQ Technologies Pvt Ltd, Bangalore

email: connect@msgq.in email: connect@msgq.in

+91- 7892 660631
