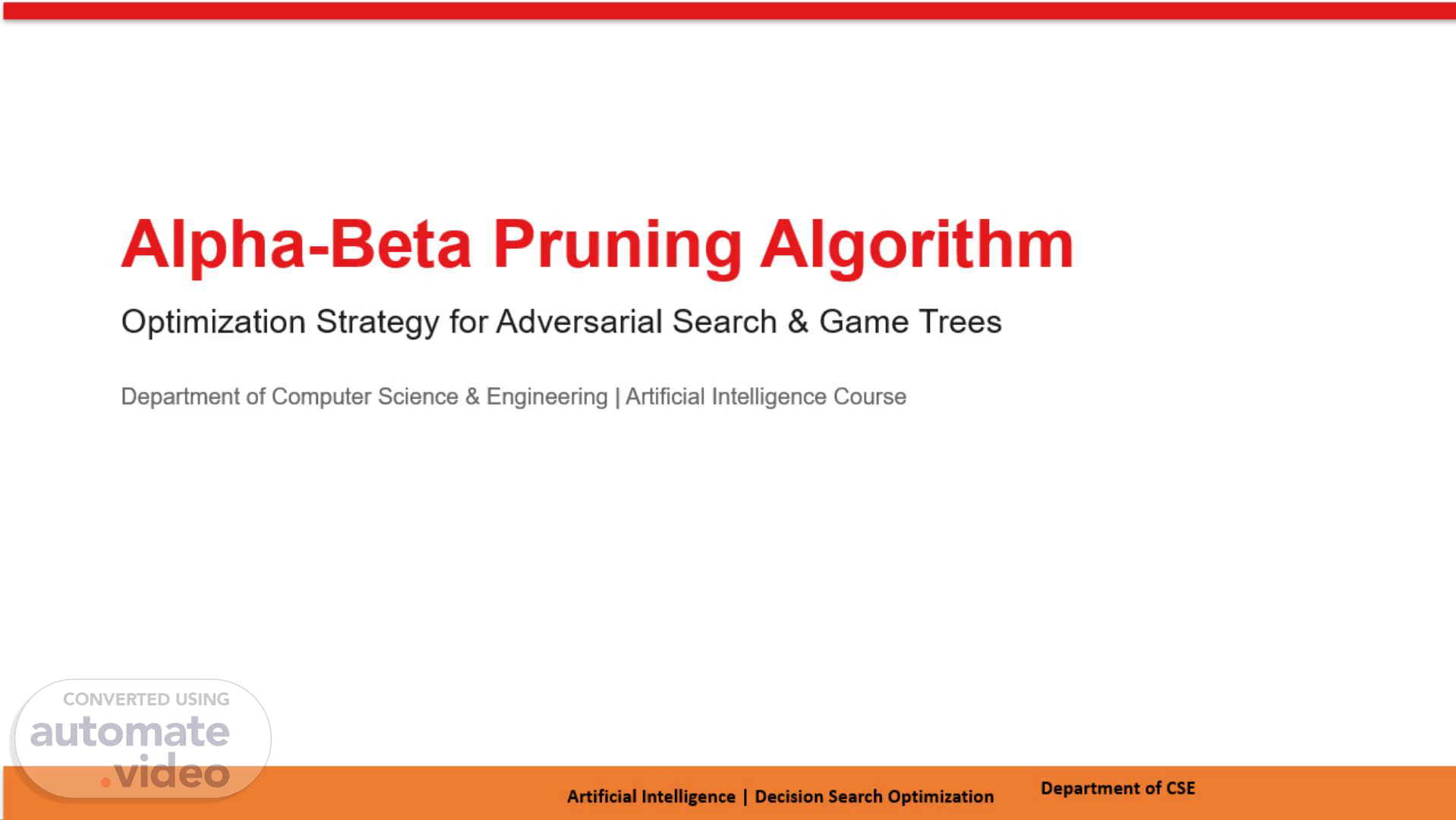

[Audio] Alpha-Beta Pruning Algorithm Optimization Strategy for Adversarial Search & Game Trees Department of Computer Science & Engineering | Artificial Intelligence Course Artificial Intelligence | Decision Search Optimization Department of CSE.

[Audio] 01. Why Alpha-Beta Pruning? • The Minimax Bottleneck: Unoptimized Minimax evaluates every single leaf node at depth d, scaling at O(b^d). For complex games like Chess (b ≈ 35), evaluating to depth 10 requires over 2.7 trillion state evaluations. • Core Goal of Pruning: Eliminate branches from the search tree that are guaranteed NOT to influence the final root choice, without losing optimal accuracy. • Soundness & Completeness: Alpha-Beta Pruning produces the exact same decision as standard Minimax — it is 100% optimal and lossless. • Efficiency Impact: By ignoring irrelevant branches, search speed increases exponentially, allowing AI agents to look twice as deep in the same amount of time. Alpha-Beta Pruning | Advanced AI & Game Theory Department of CSE.

[Audio] 02. Core Concept: Dual Thresholds (Alpha & Beta) Alpha Parameter (α) • Definition: The BEST (highest-value) score MAX is guaranteed at or above the current decision node. • Initial Value: Initialized to -Infinity at the root. • Update Rule: Updated ONLY by MAX nodes whenever a child returns a value > α. • Meaning: MAX will never accept a move yielding less than α. Beta Parameter (β) • Definition: The BEST (lowest-value) score MIN is guaranteed at or above the current decision node. • Initial Value: Initialized to +Infinity at the root. • Update Rule: Updated ONLY by MIN nodes whenever a child returns a value < β. • Meaning: MIN will never allow MAX to achieve a move yielding more than β..

[Audio] 03. The Pruning Condition & Cutoff Rules THE PRUNING CONDITION: α ≥ β Whenever alpha becomes greater than or equal to beta, further exploration of the current node's remaining children is stopped (pruned). • Alpha Cutoff (at MIN Node): Occurs when a MIN node finds a child value ≤ α. Since MAX already has an option offering α elsewhere, MAX will never let the game reach this MIN node. Stop evaluating MIN's other children! • Beta Cutoff (at MAX Node): Occurs when a MAX node finds a child value ≥ β. Since MIN already has an option forcing β elsewhere, MIN will never allow game flow into this MAX node. Stop evaluating MAX's remaining children! • Bottom Line: Pruning occurs because the opponent can force a better option on a different path, rendering further search down this path pointless..

[Audio] 04. Visualizing Alpha-Beta Execution & Cutoffs Step-by-Step Execution Trace: 1. Root Initialization: Root starts with α = -∞, β = +∞. 2. Left Subtree Evaluation: Left MIN node evaluates leaves 3 and 5 → returns 3. Root updates α = max(-∞, 3) = 3. 3. Right Subtree Traversal: Right MIN node receives α = 3, β = +∞. It evaluates its first leaf: 2. 4. Cutoff Triggered!: MIN updates β = min(+∞, 2) = 2. Now α (3) ≥ β (2). Pruning condition met! 5. Result: The remaining right sibling (9) is PRUNED without being searched. Computational savings achieved! MAX [3] MIN = 3 MIN ≤ 2 PRUNED (X).

[Audio] 05. Algorithm Implementation (Python Pseudocode) def alpha_beta(node, depth, alpha, beta, is_maximizing_player): # Base Case: Reach leaf node or maximum search depth if depth == 0 or node.is_terminal(): return node.evaluate_heuristic() if is_maximizing_player: max_eval = -float('inf') for child in node.get_children(): eval_val = alpha_beta(child, depth - 1, alpha, beta, False) max_eval = max(max_eval, eval_val) alpha = max(alpha, eval_val) if beta <= alpha: break # Beta cutoff: MIN will avoid this branch return max_eval else: min_eval = float('inf') for child in node.get_children(): eval_val = alpha_beta(child, depth - 1, alpha, beta, True) min_eval = min(min_eval, eval_val) beta = min(beta, eval_val) if beta <= alpha: break # Alpha cutoff: MAX will avoid this branch return min_eval.

[Audio] 06. Complexity Analysis: Standard vs Best-Case Worst-Case & Average Performance • Worst-Case Time: O(b^d) Occurs when moves are ordered worst-to-best. No branches are pruned; performance degrades to standard Minimax. • Average Case Time: O(b^(3d/4)) Random move ordering typically prunes ~50% of leaf nodes, offering moderate acceleration. • Space Complexity: O(b * d) Memory remains linear, determined by the depth-first search (DFS) call stack. Optimal Best-Case Performance • Best-Case Time: O(b^(d/2)) Achieved with PERFECT move ordering (best moves evaluated first at every node). • Search Depth Doubling: Effectively halves the effective branching factor to sqrt(b). An engine can search TWICE as deep in the same timeframe! • Leaf Node Reduction: Evaluates O(2 * b^(d/2)) leaf nodes instead of b^d..

[Audio] 07. The Critical Role of Move Ordering • Why Move Ordering Matters: Alpha-Beta efficiency completely depends on discovering strong moves early. Early high scores widen α and lower β quickly, triggering massive downstream cutoffs. • Principal Variation (PV) Moves: Search known best moves or principal variation lines first from transposition table memory. • Dynamic Move Heuristics: • Captures First (MVV-LVA): Most Valuable Victim - Least Valuable Attacker (e.g., Pawn takes Queen). • Killer Move Heuristic: Try quiet moves that caused cutoffs at the same ply in sibling branches. • History Heuristic: Rank moves by how frequently they caused cutoffs across the entire search tree. • Iterative Deepening Integration: Search depth 1, sort moves by score, then use that order for depth 2, depth 3, etc..

[Audio] 08. Advanced Enhancements to Alpha-Beta Search Memory & Cutoff Extensions • Transposition Tables (TT): Hash tables storing computed state values, search depth, and bounds (exact, upper, lower) using Zobrist hashing. • Null-Move Pruning: Pass a turn to see if position is so dominant that even giving opponent two moves retains α ≥ β cutoff. • Late Move Reductions (LMR): Reduce search depth for moves ranked late in move order, assuming they are unlikely to be optimal. Quiescence & Horizon Effect Solutions • The Horizon Effect Problem: Search cutoff happens mid-tactical trade (e.g., right before Queen is recaptured), causing false high/low evaluations. • Quiescence Search Solution: Extend search beyond depth cutoff ONLY for non-quiet tactical moves (piece captures, checks) until position stabilizes. • Aspiration Windows: Search with narrow [α, β] guess window around previous iteration score to maximize cutoffs..

[Audio] 09. Comparative Analysis: Minimax vs Alpha-Beta Dimension Standard Minimax Algorithm Alpha-Beta Pruning Algorithm Tree Traversal Evaluates all nodes across entire tree. Prunes irrelevant branches using α and β bounds. Time Complexity O(b^d) always. O(b^(d/2)) best case, O(b^d) worst case. Search Depth Capacity Shallow depth due to combinatorial explosion. Twice the depth capacity in equal execution time. Decision Accuracy 100% optimal move guarantees. 100% identical decision output (Zero loss)..

[Audio] 10. Real-World Applications & Modern Game AI • Chess Engines (Stockfish, Komodo): Classic world-champion chess engines use heavily optimized Alpha-Beta search combined with NNUE (Efficiently Updatable Neural Networks) evaluation. • Checkers (Chinook): Used Alpha-Beta search and endgame database lookup tables to mathematically solve Checkers (100% unbeatable). • Connect Four & Othello: Solved and master-level agents rely on Alpha-Beta pruning to evaluate thousands of candidate move branches per second. • Limitations in High-Branching Games (Go): In games like Go (b ≈ 250), even O(b^(d/2)) is too large. Modern AI shifted to Monte Carlo Tree Search (MCTS) + Deep Neural Networks (AlphaGo)..

[Audio] 11. Summary & Key Takeaways for CSE Engineers 1. Uncompromised Soundness: Alpha-Beta Pruning never skips a node that could affect the optimal decision. Result quality is identical to Minimax. 2. Alpha (α) and Beta (β) Mechanics: Alpha tracks MAX's best option (-∞ default); Beta tracks MIN's best option (+∞ default). Pruning triggers when α ≥ β. 3. Move Ordering is Key: Good move ordering transforms runtime from O(b^d) down to O(b^(d/2)), effectively doubling the achievable search depth. 4. Essential Production Add-ons: Real-world engines pair Alpha-Beta with Transposition Tables, Quiescence Search, and Iterative Deepening to prevent Horizon Effect errors..
